Product Detailed Parameters
- Description：IGBT MODULES 1200V 50A, E1A
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- IGBT Type：-
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.3V @ 15V, 50A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：E1A
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：50 A
- Power - Max：288 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：2.6 nF @ 25 V
Download product information
Overview

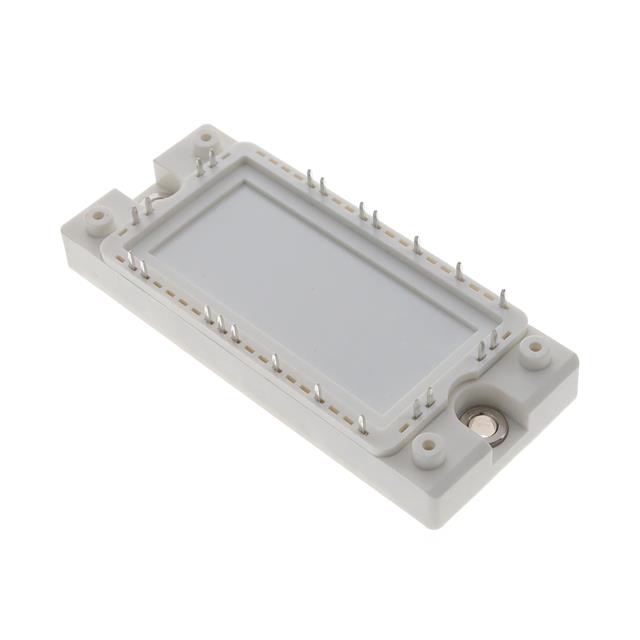

The MIP50R12E1ATN-BP is a silicon IGBT module from Micro Commercial Components featuring an integrated NTC thermistor. It provides a collector-emitter voltage of 1200V and continuous collector current ratings of 50A for inverter configurations and 35A for brake-chopper applications. The device supports a maximum junction temperature of 175°C and includes a fast soft-recovery anti-parallel freewheeling diode. Electrical characteristics include a typical Vce(sat) of 1.9V at 50A and 25°C, with total power dissipation rated at 288W.
Feature Summary
- Low switching losses combined with low Vce(sat) exhibiting a positive temperature coefficient
- Integrated fast and soft recovery anti-parallel freewheeling diode
- High short circuit capability lasting up to 10 microseconds
- Low inductance case design with epoxy meeting UL 94 V-0 flammability rating
Applications
- Motor Drivers
- AC and DC Servo Drive Amplifier
- UPS (Uninterruptible Power Supplies)
Procurement Notes
Verify the component against the official MCC datasheet Rev.4-1-12012023 to confirm technical specifications. Ensure the suffix -BP indicates RoHS compliance as documented. Purchase only from authorized distributors to guarantee authenticity and traceability, avoiding unauthorized sources that may supply counterfeit parts lacking proper warranty coverage.
Selection Notes
Select this module for high-power applications requiring robust short-circuit tolerance and efficient thermal management. The integrated NTC thermistor facilitates precise junction temperature monitoring. Consider the specific current ratings for inverter versus brake-chopper topologies when designing the circuit. Verify gate drive requirements align with the specified threshold voltages and capacitance values.
Part Context
This component belongs to the MIP50R12E1ATN series of IGBT modules manufactured by Micro Commercial Components. It utilizes silicon technology and is designed for industrial power electronics. The module integrates an IGBT switch with an anti-parallel diode and an NTC thermistor within a single package structure.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official resources or authorized distributors for equivalent alternatives if this specific model is unavailable.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tjmax) is 175°C.
Does the module include thermal monitoring?
Yes, the module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.
What is the short circuit withstand time?
The module has a high short circuit capability of 10 microseconds under specified conditions.
