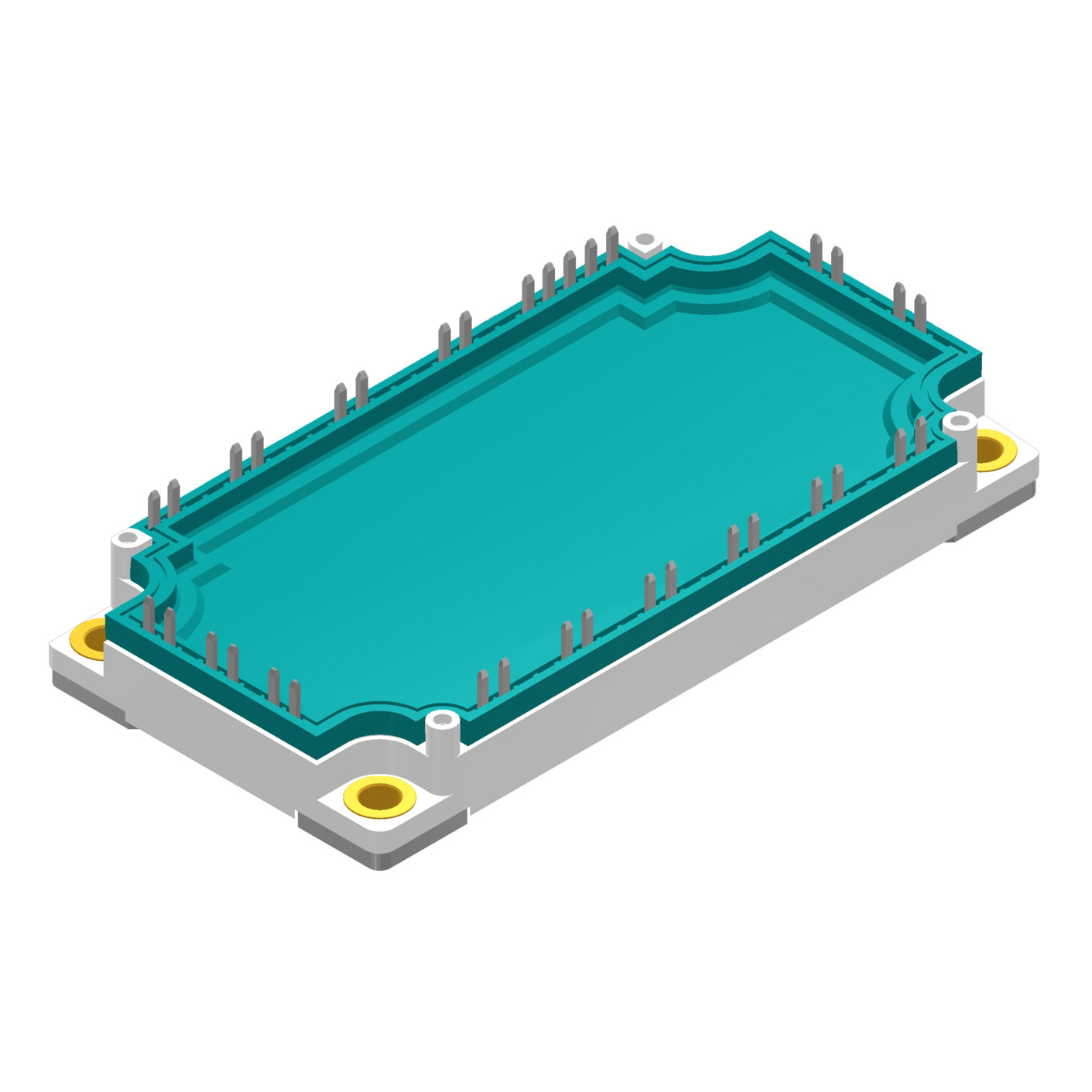

MIXA60WB1200TEH

Description：IGBT MODULE 1200V 85A 290W E3
Series：-

SKU:581f94fdc9d6 Category: IGBT Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 85A 290W E3
Series：-
Mfr：IXYS
Package：Box
IGBT Type：PT
Configuration：Three Phase Inverter with Brake
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 55A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：E3
Supplier Device Package：E3
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：85 A
Power - Max：290 W
Current - Collector Cutoff (Max)：500 µA
Input Capacitance (Cies) @ Vce：-

Download product information

MIXA60WB1200TEH

Overview

The MIXA60WB1200TEH is a six-pack IGBT module from IXYS, utilizing XPT technology for high-voltage applications. It features a 1200 V collector-emitter voltage rating and an 85 A continuous collector current at 25°C. The module incorporates three half-bridge configurations with integrated brake diodes, suitable for inverter and converter circuits. It operates within a temperature range of -40°C to +125°C and dissipates up to 290 W of power. The unit employs screw mount installation via an E3-Pack housing.

Feature Summary

Integrates three half-bridge legs with common cathode brake diodes for efficient power conversion
Utilizes IXYS XPT technology to optimize switching performance and reduce conduction losses
Designed for robust chassis mounting with standardized mechanical interfaces

Applications

Three-phase inverter circuits
Converter-brake systems
Medium-power industrial drives

Procurement Notes

Verify the specific suffix TEH against official datasheets to confirm package dimensions and terminal configuration. Ensure thermal interface materials match the E3-Pack requirements. Cross-reference the manufacturer's latest revision history for any pinout or electrical parameter updates before finalizing procurement specifications.

Selection Notes

Select this component when a combined inverter and brake function is required in a single package. The 1200 V rating suits medium-voltage AC drive applications. Consider the 85 A current capacity relative to thermal management capabilities. Verify that the E3-Pack form factor fits the intended mechanical enclosure constraints.

Part Context

This module belongs to the MIXA series of IXYS power modules. It represents a consolidated solution for three-phase topologies, replacing discrete components with a unified semiconductor structure. The integration of brake diodes simplifies circuit design by providing a dedicated path for regenerative energy dissipation.
