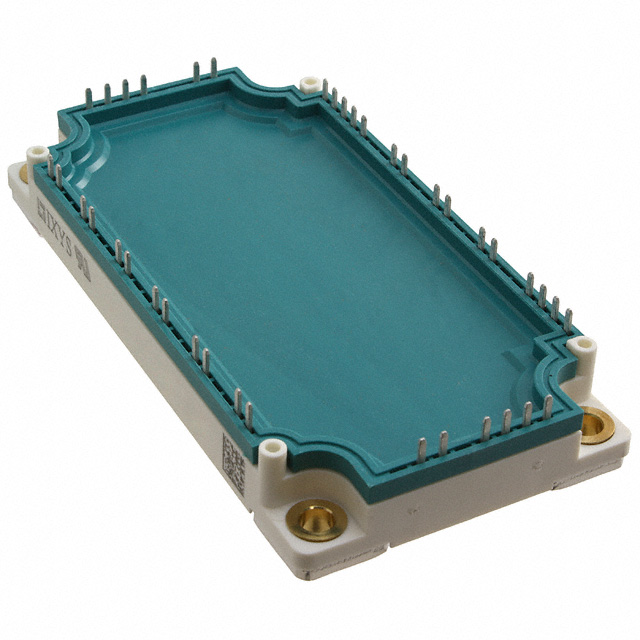

MIXA60WH1200TEH

Description：IGBT MODULE 1200V 85A 290W E3
Series：-

SKU:b7ac3614d1c8 Category: IGBT Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 85A 290W E3
Series：-
Mfr：IXYS
Package：Box
IGBT Type：-
Configuration：Three Phase Inverter with Brake
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 55A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-
Mounting Type：Chassis Mount
Package / Case：E3
Supplier Device Package：E3
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：85 A
Power - Max：290 W
Current - Collector Cutoff (Max)：500 µA
Input Capacitance (Cies) @ Vce：-

Download product information

MIXA60WH1200TEH

Overview

The MIXA60WH1200TEH is an IGBT module from IXYS utilizing XPT technology. It features a six-pack configuration with a maximum collector-emitter voltage of 1200 V and a continuous collector current of 85 A at 25°C. The saturation voltage is 1.8 V, with power dissipation rated at 195 W to 390 W depending on specific thermal conditions. Operating temperatures range from -40°C to +125°C or +150°C. The unit uses E3-Pack chassis mounting.

Feature Summary

Six-pack topology for three-phase inverter applications
XPT technology for optimized switching performance
Chassis mount design for high-power integration

Applications

Three-phase inverter systems
Industrial motor drives
Power conversion equipment

Procurement Notes

Verify the exact datasheet version and thermal specifications before procurement. Confirm that the supplier provides original manufacturer documentation. Ensure compatibility with required cooling solutions for the specified power dissipation ratings. Check for RoHS compliance status as indicated in official records.

Selection Notes

Select this component for applications requiring a six-pack IGBT configuration with 1200 V blocking capability. Consider the 85 A current rating and thermal management requirements for chassis mounting. Evaluate the XPT technology benefits for hard-switching efficiency against alternative modules in the same voltage class.

Part Context

This module belongs to the MIXA series of IXYS power semiconductors. It represents a specialized solution for medium-to-high power industrial applications. The XPT technology distinguishes it from standard trench IGBTs by offering improved trade-offs between conduction and switching losses.
