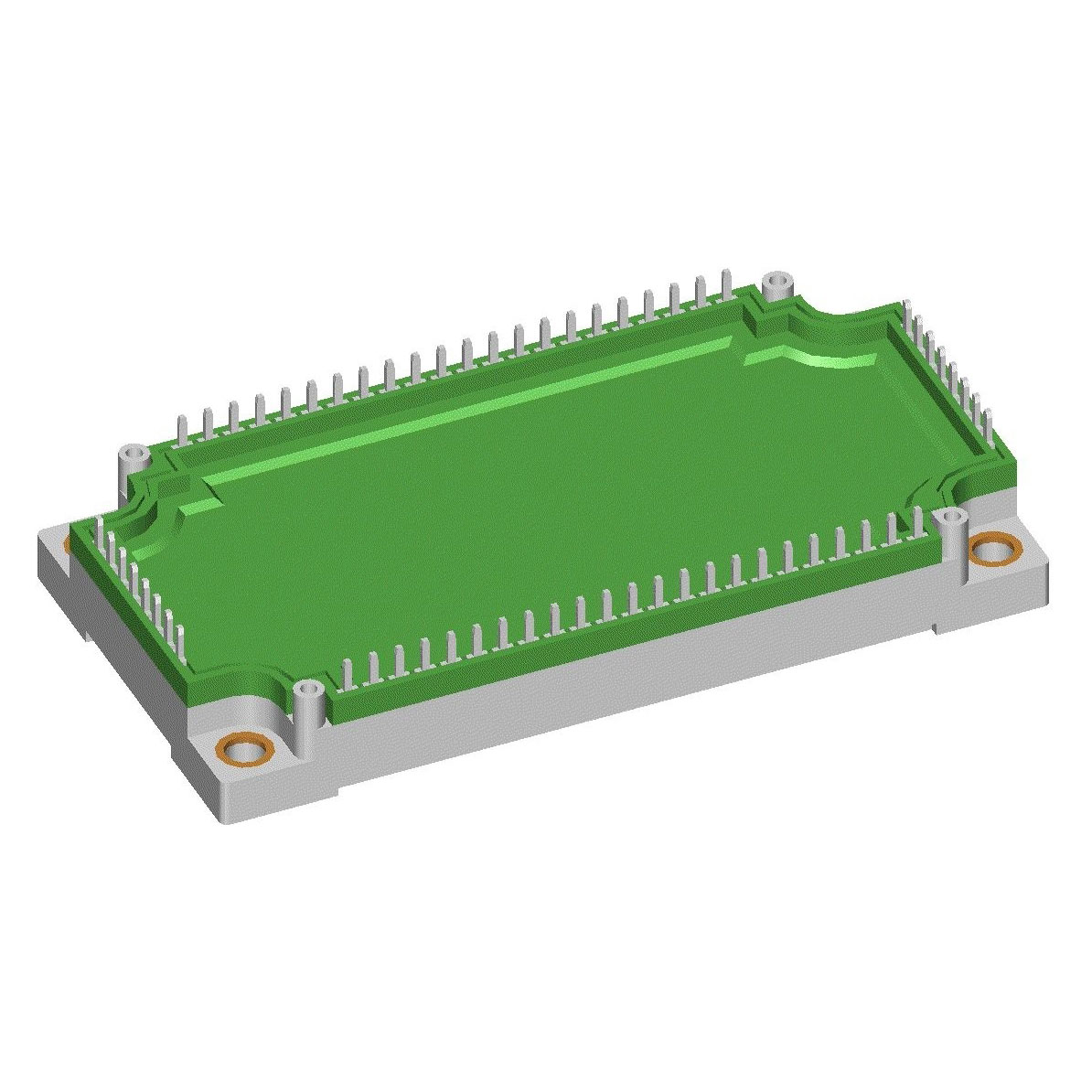

MIXA80WB1200TEH

Description：IGBT MODULE 1200V 120A 390W E3
Series：-

SKU:327bb33d76f9 Category: IGBT Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 120A 390W E3
Series：-
Mfr：IXYS
Package：Box
IGBT Type：PT
Configuration：Three Phase Inverter with Brake
Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 77A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：E3
Supplier Device Package：E3
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：120 A
Power - Max：390 W
Current - Collector Cutoff (Max)：200 µA
Input Capacitance (Cies) @ Vce：-

Download product information

MIXA80WB1200TEH

FAQ

Is the MIXA80WB1200TEH part number officially documented in public IXYS datasheets?

No verified official datasheet or public technical documentation for the specific model MIXA80WB1200TEH is available. The provided source material lists similar models such as MIXA40WB1200TED and MIXA60W1200TED, but does not confirm the existence or specifications of the TEH suffix variant.

What are the electrical ratings for the MIXA80WB1200TEH?

Specific electrical parameters including collector current (Ic), voltage (Vceo), and saturation voltage (Vcesat) cannot be provided because no verified manufacturer data exists for this exact part number in the reference materials.
