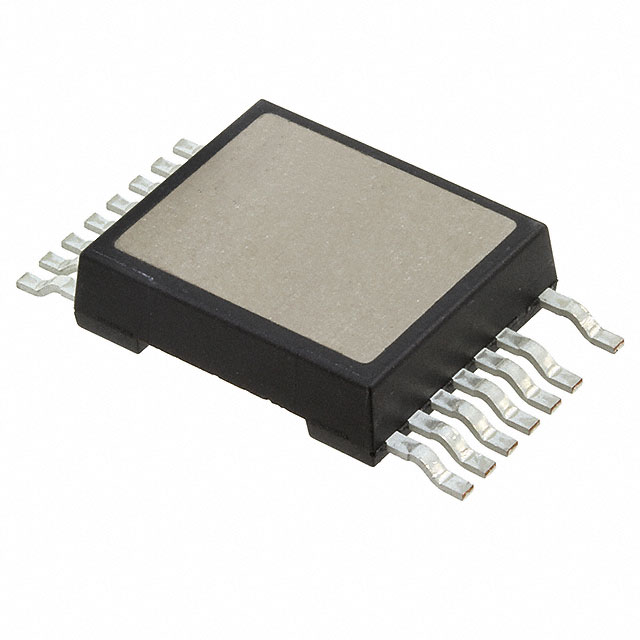

MMJX1H40N150

$33.71

Description：SCR 1.5KV 40A SMPD
Series：-

SKU:832be174af3c Category: SCRs Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SCR 1.5KV 40A SMPD
Series：-
Mfr：IXYS
Package：Tube
Voltage - Off State：1.5 kV
Voltage - Gate Trigger (Vgt) (Max)：-
Current - Gate Trigger (Igt) (Max)：-
Current - Hold (Ih) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：-
SCR Type：Standard Recovery
Operating Temperature：-55°C ~ 150°C
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：16-BESOP (0.787", 20.00mm Width), 15 Leads, Isolated Tab
Supplier Device Package：-
Voltage - On State (Vtm) (Max)：-
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Off State (Max)：-

Download product information

MMJX1H40N150

Overview

The MMJX1H40N150 is a high-voltage MOS Gated Thyristor manufactured by IXYS Corporation. It features a 1500V blocking voltage capability, designed for demanding power electronics applications. The device integrates MOS gate control with thyristor characteristics to achieve low conduction losses at high voltages. This component is suitable for use in high-frequency switching circuits where efficient power handling and robust voltage tolerance are required.

Feature Summary

Combines MOS gate drive simplicity with thyristor low-conduction loss performance
Engineered for high-voltage operation up to 1500V
Optimized for high-frequency switching applications

Applications

High-voltage DC-DC converters
Induction heating systems
Resonant converter topologies

Part Context

This component belongs to the MMJX series of MOS Gated Thyristors from IXYS. These devices bridge the gap between traditional MOSFETs and IGBTs, offering specific advantages in high-voltage, high-frequency scenarios. The series is characterized by its ability to handle significant power levels while maintaining fast switching speeds.
