MSC2X101SDA120J

Overview

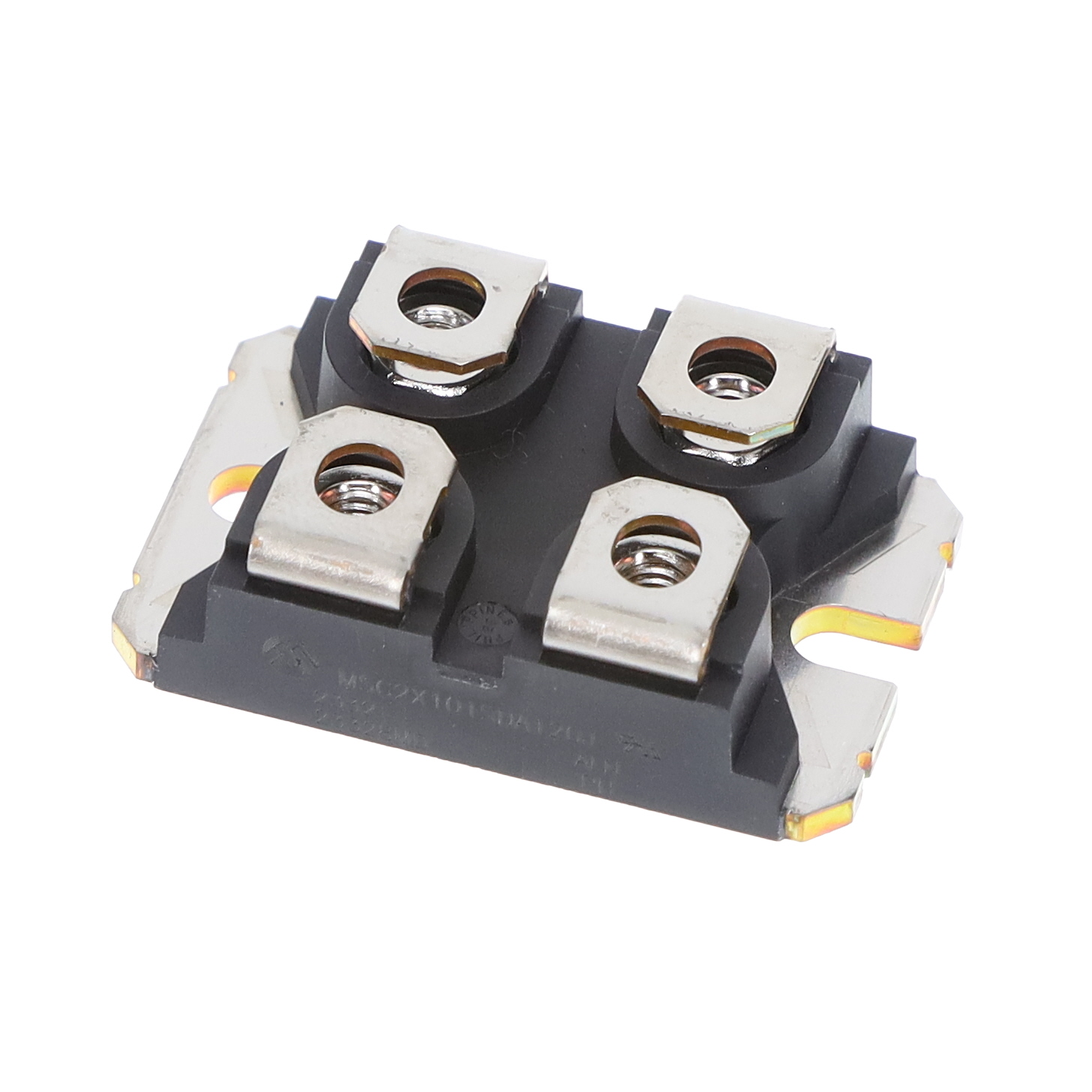

The MSC2X101SDA120J is a silicon carbide Schottky barrier diode module manufactured by Microchip Technology. It features a dual parallel configuration housed in a SOT-227-4 package with screw mount installation style. The device supports a maximum repetitive reverse voltage of 1.2 kV and provides an average forward current rating of 100 A. The typical forward voltage drop is specified at 1.8 V. The component operates within a junction temperature range from -55°C to +175°C.

Feature Summary

• Utilizes silicon carbide (SiC) technology for superior thermal performance and high-temperature operation capabilities.
• Features a dual parallel configuration to handle high current loads efficiently.
• Designed for screw mount installation in the SOT-227-4 package for robust mechanical stability.

Applications

• High-power DC/DC converters
• Induction heating systems
• Uninterruptible power supplies (UPS)
• Solar inverters

Procurement Notes

Verify the specific ordering suffix and revision level against the official Microchip datasheet before procurement. Confirm that the SOT-227-4 package dimensions match the target heatsink interface requirements. Ensure the supplier provides traceability documentation consistent with Microchip's quality standards. Check for any recent product change notifications that may affect pinout or electrical characteristics.

Selection Notes

Select this component when designing circuits requiring high voltage blocking capability combined with high current handling in a compact module form factor. The SiC material choice is critical for applications demanding low switching losses and high efficiency at elevated temperatures. Consider the thermal resistance of the SOT-227 package when calculating heatsink requirements for continuous 100 A operation.

Part Context

This part belongs to Microchip's ISOTOP discrete rectifier portfolio, which focuses on high-performance silicon carbide solutions. The series is engineered for industrial and automotive applications where reliability under harsh conditions is paramount. It complements other SiC devices in the Microchip ecosystem, such as MOSFETs, to create complete power conversion stages.

Replacement Considerations

Direct replacements must match the 1.2 kV / 100 A specification and SOT-227-4 package. Verify compatibility with existing gate drive and thermal management designs if substituting with similar SiC modules from other manufacturers.
