MSCDC150A170D1PAG

Overview

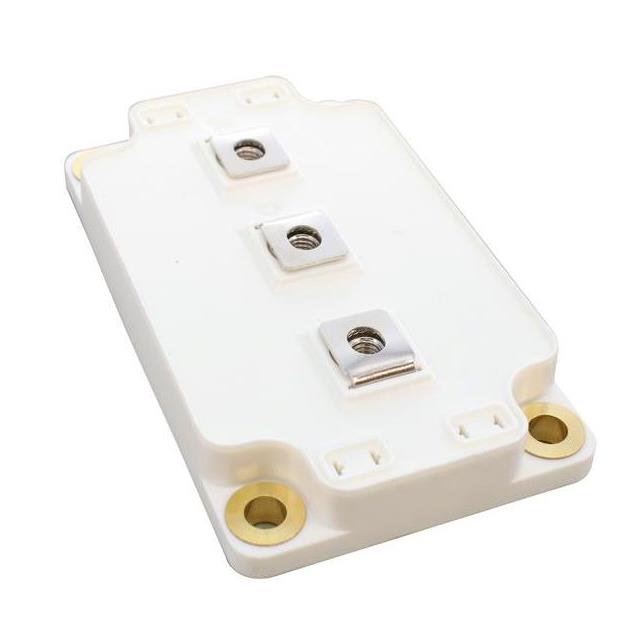

The MSCDC150A170D1PAG is a Silicon Carbide (SiC) Schottky diode module manufactured by Microchip Technology. It features a dual configuration with a reverse voltage rating of 1700 V and a forward current capacity of 150 A. The device utilizes D1PAG packaging for chassis mounting, supporting an operating temperature range from -40°C to +175°C. Key electrical characteristics include zero reverse recovery time and zero forward recovery, ensuring high efficiency in power conversion applications.

Feature Summary

• Silicon Carbide Schottky technology providing zero reverse and forward recovery times
• High thermal stability with a maximum junction temperature capability of +175°C
• Robust mechanical design suitable for chassis mounting in industrial environments

Applications

• Industrial motor drives and inverters
• Uninterruptible power supplies (UPS)
• High-frequency DC-DC converters

Procurement Notes

Verify the specific datasheet revision and package marking codes upon order confirmation. Ensure that thermal interface materials and mounting hardware are compatible with the D1PAG chassis mount specification. Confirm compliance with RoHS directives and check for any recent product change notifications that may affect pinout or material composition before finalizing procurement.

Selection Notes

Select this component for applications requiring high-voltage isolation and minimal switching losses. The SiC technology offers superior performance compared to silicon alternatives in high-temperature environments. Consider the 150 A current rating and 1700 V blocking capability when designing circuits for medium-power industrial systems where efficiency and thermal management are critical constraints.

Part Context

This part belongs to Microchip's series of discrete and power modules utilizing Silicon Carbide technology. It is designed as a replacement for legacy silicon diodes in high-power density applications. The D1PAG package format allows for direct integration into existing chassis-mounted cooling solutions, facilitating easier thermal path design for engineers upgrading from older semiconductor technologies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing PCB footprints and thermal pads if replacing similar modules from other manufacturers.
