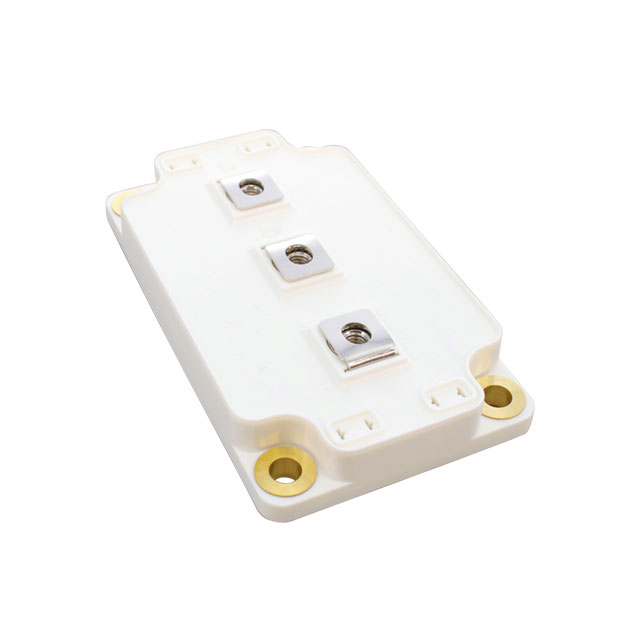

MSCDC450A70AG

$330.74

Description：DIODE MODULE SIC 700V 450A SP6
Series：-

SKU:6a067ab4d33b Category: Diode Arrays Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE MODULE SIC 700V 450A SP6
Series：-
Mfr：Microchip Technology
Package：Tube
Diode Configuration：1 Pair Series Connection
Technology：SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max)：700 V
Current - Average Rectified (Io) (per Diode)：450A
Voltage - Forward (Vf) (Max) @ If：1.8 V @ 450 A
Speed：No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)：0 ns
Current - Reverse Leakage @ Vr：1.8 mA @ 700 V
Operating Temperature - Junction：-40°C ~ 175°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：SP6
Grade：-
Qualification：-

Download product information

MSCDC450A70AG

Overview

The MSCDC450A70AG is a Silicon Carbide (SiC) Schottky diode module manufactured by Microchip Technology. It features a dual phase leg configuration with screw mount installation. The device supports a reverse voltage of 700 V and a forward voltage of 1.5 V. Operating temperatures range from -40°C to +125°C.

Feature Summary

Utilizes Silicon Carbide technology for high-efficiency power conversion
Dual phase leg configuration for compact circuit integration
Screw mount style for robust mechanical attachment

Applications

High-voltage power supply systems
Industrial motor drives
Renewable energy inverters

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Microchip Technology or authorized distributors before procurement. Confirm that the screw mount package dimensions match the target thermal management design requirements. Ensure the operating temperature range aligns with the intended application environment specifications.

Selection Notes

Select this component when a dual SiC Schottky diode configuration is required for high-voltage applications. The 700V rating suits medium-voltage systems, while the 1.5V forward voltage indicates low conduction losses. Verify compatibility with existing thermal interface materials and mounting hardware for the screw mount package type.

Part Context

This part belongs to Microchip's SiC Schottky Diode Modules series. These modules are designed for high-reliability power electronics. The SP6C designation refers to the specific package form factor used within this product line.

Replacement Considerations

Consult official substitution guides for equivalent current ratings and voltage capabilities. Verify pinout compatibility and thermal resistance values before replacing.
