MSCDC600A70AG

Overview

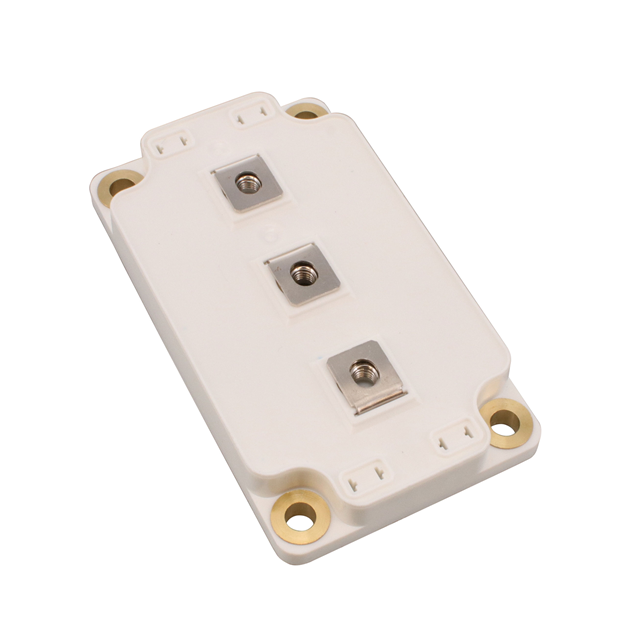

The MSCDC600A70AG is a silicon carbide (SiC) Schottky diode module manufactured by Microchip Technology. It features a dual configuration within a phase leg topology, designed for high-voltage power applications. The device supports a reverse voltage of 700 V and exhibits a forward voltage of 1.5 V. It operates reliably within a temperature range from -40°C to +125°C. The module utilizes screw mount installation for secure integration into power systems.

Feature Summary

• Utilizes silicon carbide technology for enhanced thermal performance and efficiency
• Features a dual phase leg configuration for compact power circuit design
• Designed with screw mount installation for robust mechanical stability

Applications

• High voltage power conversion systems
• Industrial motor drive inverters
• Uninterruptible power supply units

Procurement Notes

Verify the specific datasheet revision and environmental compliance documentation prior to procurement. Confirm that the screw mount interface matches the intended heatsink or busbar assembly specifications. Ensure the operating temperature range aligns with the system's thermal management capabilities. Cross-reference the part number suffixes to confirm exact electrical characteristics match the design requirements.

Selection Notes

Select this component when a high-reliability SiC diode solution is required for phase leg applications. The dual configuration simplifies layout compared to discrete components. Consider the 700 V rating and 1.5 V forward voltage drop for efficiency calculations. Verify compatibility with existing thermal interfaces due to the screw mount requirement.

Part Context

This module belongs to Microchip Technology's series of silicon carbide power modules. These components are engineered to replace traditional silicon devices in demanding environments. The SP6C packaging style indicates a specific form factor optimized for high current density and low stray inductance in power electronics designs.

Replacement Considerations

Consult official substitution lists for equivalent phase leg configurations. Verify that any alternative maintains the 700 V reverse voltage and compatible forward voltage characteristics. Ensure mechanical mounting dimensions and thermal resistance values are comparable to maintain system integrity.
