MSL60N05

$0.16

Description：N Channel MOSFET,60V,SOT-223
Series：*
Mfr：Bruckewell
Package：Tape & Reel (TR)

SKU:71138f06666d Category: Single FETs, MOSFETs Brand: Bruckewell

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：N Channel MOSFET,60V,SOT-223
Series：*
Mfr：Bruckewell
Package：Tape & Reel (TR)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：50mOhm @ 4A, 10V
Vgs(th) (Max) @ Id：2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：-
FET Feature：-
Power Dissipation (Max)：-
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：SOT-223
Package / Case：TO-261-4, TO-261AA

Download product information

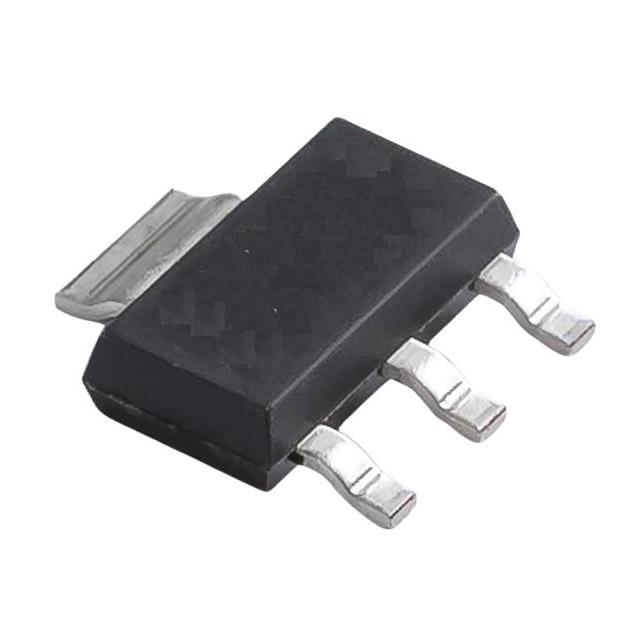

MSL60N05

Overview

The MSL60N05 is a high-performance N-channel MOSFET utilizing advanced trench technology with extreme cell density. It provides excellent RDS(ON) and gate charge characteristics for small power switching applications. The device features a 60V drain-source voltage rating, a continuous drain current of 5A at 25°C, and a maximum junction temperature of 150°C. Packaged in SOT-223, it meets RoHS and Green Product requirements.

Feature Summary

Advanced high cell density Trench technology
Low On-Resistance
Low Gate Charge
Low Input Capacitance

Applications

Motor Drive
Power Tools
LED Lighting

Procurement Notes

Verify the specific datasheet revision (Rev. A -2020) matches your design requirements. Confirm that the SOT-223 package dimensions align with your PCB footprint. Ensure thermal management strategies account for the specified junction-to-ambient resistance ratings under actual operating conditions.

Selection Notes

Select this component for applications requiring efficient small power switching with low conduction losses. Consider the 60V breakdown voltage and 5A continuous current limits when designing circuits. Evaluate the thermal performance based on the specified power dissipation and ambient temperature constraints.

Part Context

Bruckewell Technology Corporation manufactures the MSL60N05 as part of their discrete semiconductor portfolio. The company focuses on providing innovative solutions for power management and switching applications. This MOSFET represents their commitment to high-density cell designs for improved efficiency.

Replacement Considerations

Consult official Bruckewell documentation or authorized distributors for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' devices without validating electrical parameters and pin configurations against the original specifications.
