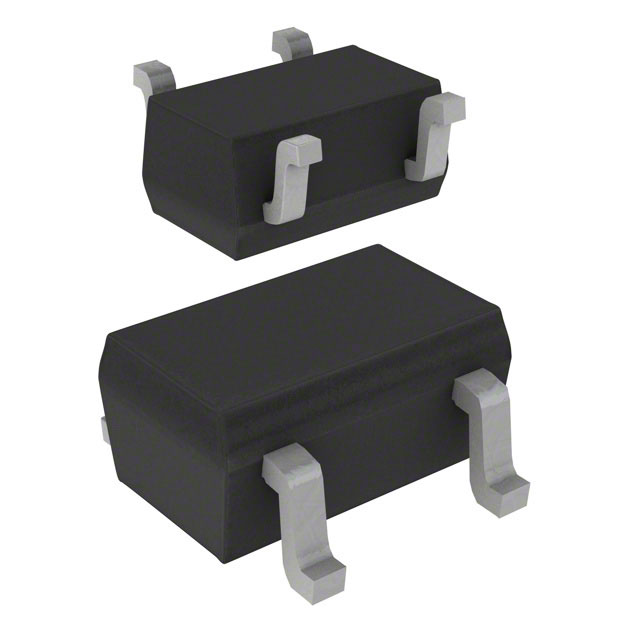

MT4S300U(TE85L,O,F

$0.51

Description：RF TRANS NPN 4V 26.5GHZ USQ
Series：-

SKU:695886860712 Category: Bipolar RF Transistors Brand: Toshiba Semiconductor and Storage

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF TRANS NPN 4V 26.5GHZ USQ
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)
Transistor Type：NPN
Voltage - Collector Emitter Breakdown (Max)：4V
Frequency - Transition：26.5GHz
Noise Figure (dB Typ @ f)：0.55dB @ 2GHz
Gain：16.9dB
Power - Max：250mW
DC Current Gain (hFE) (Min) @ Ic, Vce：200 @ 10mA, 3V
Current - Collector (Ic) (Max)：50mA
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：SC-82A, SOT-343
Supplier Device Package：USQ
Grade：-
Qualification：-

Download product information

MT4S300U(TE85L,O,F

Overview

The MT4S300U(TE85L,O,F) is a Silicon-Germanium (SiGe) heterojunction bipolar transistor (HBT) manufactured by Toshiba Semiconductor and Storage. It features an NPN configuration housed in a surface-mount SC-82A (SOT-343) package. Key electrical specifications include a collector-emitter breakdown voltage of 4V, a maximum collector current of 50mA, and a transition frequency of 26.5GHz. The device supports a maximum power dissipation of 250mW and operates at junction temperatures up to 150°C. It exhibits a typical noise figure of 1.5dB and offers a gain of 16.9dB.

Feature Summary

Utilizes SiGe HBT technology for high-frequency performance
Designed for low-voltage operation with 4V breakdown rating
Optimized for ultra-high frequency applications up to 26.5GHz
Compact surface-mount packaging suitable for space-constrained designs

Applications

Wireless communication systems
RF signal amplification
Mobile phone front-end modules
High-speed data transmission circuits

Procurement Notes

Verify component authenticity through authorized distributors due to obsolete status. Confirm RoHS compliance and lead-free specifications during sourcing. Check for valid replacement part numbers as original stock may be depleted. Ensure handling procedures meet ESD protection standards for sensitive semiconductor devices.

Selection Notes

Select this component for applications requiring high gain and low noise at microwave frequencies. Consider the 4V limit when designing power supply rails. Evaluate thermal management requirements given the 250mW dissipation capability. Compare against alternative SiGe transistors if higher voltage tolerance is needed.

Part Context

This part belongs to Toshiba's RF transistor portfolio, specifically utilizing SiGe technology for enhanced speed and linearity. It serves as a specialized discrete component for radio frequency engineering, distinct from standard silicon BJTs or integrated RF ICs.

Replacement Considerations

Public confirmed substitutes include BFR380FH6327XTSA1 and MRF454. Verify pinout compatibility and electrical parameter alignment before substitution.
