Product Detailed Parameters
- Description：IGBT MODULE 1200V 35A 180W E2
- Series：-
- Mfr：IXYS
- Package：Box
- IGBT Type：NPT
- Configuration：Three Phase Inverter with Brake
- Vce(on) (Max) @ Vge, Ic：2.6V @ 15V, 15A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：E2
- Supplier Device Package：E2
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：35 A
- Power - Max：180 W
- Current - Collector Cutoff (Max)：900 µA
- Input Capacitance (Cies) @ Vce：1 nF @ 25 V
Download product information
Overview

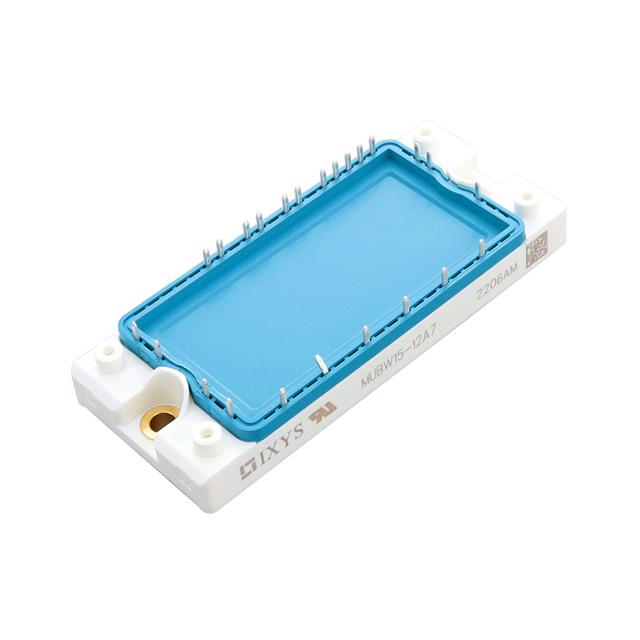

The MUBW15-12A7 is an IGBT module manufactured by IXYS Corporation, designed for high-power electronic applications. It features a three-phase inverter configuration with brake functionality. The module supports a maximum collector-emitter breakdown voltage of 1200 V and a maximum collector current of 35 A. This component integrates power semiconductor devices to facilitate efficient drive systems.
Feature Summary
- High level of integration requiring only one power semiconductor module for the entire drive system
- Incorporates fast rectifier diodes to enhance electromagnetic compatibility (EMC) behavior
Applications
- Three-phase inverter circuits
- Drive systems
- Converter applications
Procurement Notes
Verify the specific datasheet version and manufacturer documentation before procurement. Confirm that the electrical ratings, including the 1200 V breakdown voltage and 35 A current capacity, align with the target application requirements. Ensure the three-phase inverter with brake configuration matches the system design specifications to avoid compatibility issues during implementation.
Selection Notes
Select this module when a compact solution for three-phase inverters is required. The integrated brake function and fast rectifier diodes make it suitable for applications demanding improved EMC performance. Consider the 1200 V and 35 A ratings to ensure adequate margin for the intended load conditions and switching frequencies.
Part Context
This component belongs to the MUBW series of IGBT modules from IXYS. These modules are engineered for power electronics applications where high efficiency and reliability are critical. The series typically offers integrated solutions for inverter and converter topologies, reducing the complexity of drive circuit designs.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Consult official IXYS documentation or authorized distributors for compatible alternatives.
