Product Detailed Parameters

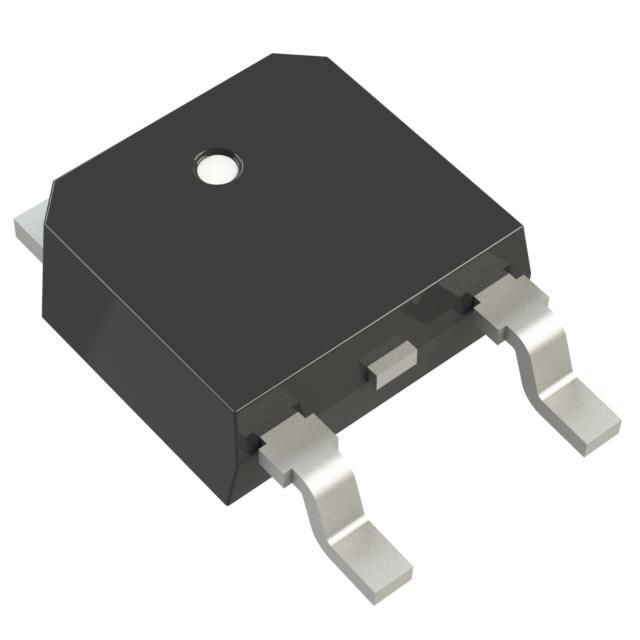

- Description：DIODE ARRAY GP 400V 16A TO252
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Diode Configuration：1 Pair Common Cathode
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：400 V
- Current - Average Rectified (Io) (per Diode)：16A
- Voltage - Forward (Vf) (Max) @ If：1.25 V @ 8 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：35 ns
- Current - Reverse Leakage @ Vr：5 µA @ 400 V
- Operating Temperature - Junction：-55°C ~ 150°C
- Mounting Type：Surface Mount
- Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
- Supplier Device Package：TO-252 (DPAK)
- Grade：-
- Qualification：-
Download product information
Overview
The MURSD1640CTA-TP is a Fast Recovery Epitaxial Diode (FRED) manufactured by Micro Commercial Components. It features a dual common cathode configuration housed in a TO-263AC (D2PAK-3) surface-mount package. The device is rated for a repetitive peak reverse voltage of 400 V and an average forward rectified current of 16 A per diode. Key electrical characteristics include a maximum non-repetitive peak surge current of 150 A, a typical reverse recovery time of 75 ns, and a low forward voltage drop. It operates within a junction temperature range of -55°C to +175°C.
Feature Summary
- Dual common cathode configuration for efficient bridge or center-tapped applications
- Fast recovery epitaxial diode technology for high-speed switching performance
- Surface-mount D2PAK-3 package optimized for automated assembly and thermal management
Applications
- High-frequency DC/DC converters
- Free-wheeling rectification in power supplies
- Inverter circuits in motor drives
Procurement Notes
Verify the specific suffix 'TP' indicates standard tape-and-reel packaging as documented by MCC. Confirm RoHS compliance status through the official datasheet before integration. Ensure the TO-263AC footprint matches your PCB layout requirements. Cross-reference the part number with authorized distributors to confirm current availability and authenticity.
Selection Notes
Select this component when designing circuits requiring fast switching speeds and high current handling in a compact surface-mount form factor. The dual common cathode arrangement simplifies board space compared to discrete single diodes. Ensure the thermal design accommodates the 16 A rating and that the 400 V reverse voltage exceeds the circuit's peak inverse voltage demands.
Part Context
This part belongs to the MURSD series of fast recovery rectifiers from Micro Commercial Components. The series is designed for general-purpose high-efficiency rectification in modern power electronics. The TO-263AC package provides robust mechanical stability and heat dissipation capabilities suitable for industrial and consumer power applications.
Replacement Considerations
Direct substitutes may include other 16A 400V dual common cathode FREDs in TO-263 packages from manufacturers like Vishay or ON Semiconductor. Verify pinout compatibility and ensure equivalent reverse recovery time and forward voltage specifications.
