NCV78702MW1AR2G

Overview

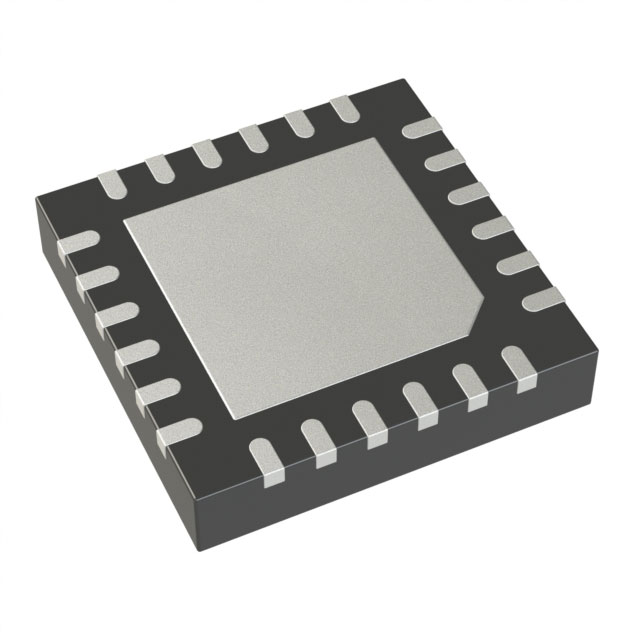

The NCV78702MW1AR2G is a single-chip, high-efficiency boost driver designed for intelligent power ballasts and LED driving applications. It functions as a current mode voltage boost controller with integrated input filtering, requiring minimal external components. The device supports driving multiple LED strings up to 60V and enables multiphase boost configurations (2-phase, 3-phase, or 4-phase) when combined with additional units to optimize filtering and reduce BOM costs. Key specifications include an output voltage range of 0.4V to 64.8V, a switching frequency of 350kHz, and SPI programmability for dynamic control. It operates within a junction temperature range of -40°C to 150°C and is housed in a 24-QFN (4x4) package.

Feature Summary

• Integrates active input filtering to reduce battery current ripple and features programmable input current limiting for flexible system control.
• Supports multiphase boost operation by combining multiple devices to enhance filtering performance and lower overall component costs.
• Offers SPI interface for dynamic programming of system parameters, allowing a single hardware configuration to support various application platforms.
• Includes Fault Safe Operation (FSO) modes and independent modes to improve system reliability alongside integrated fault diagnostics.

Applications

• Automotive headlight systems including high beam and low beam applications
• Daytime Running Light (DRL) circuits
• High-current LED string drivers in automotive lighting

Procurement Notes

Verify the specific suffix AR2G indicates the reel packaging format when ordering. Confirm that the 24-QFN package dimensions align with your PCB footprint requirements. Ensure compatibility with the required SPI communication protocol for your controller. Check for any recent Product Change Notices regarding assembly sites or material updates before finalizing procurement plans.

Selection Notes

Select this component for designs requiring high efficiency and reduced electromagnetic interference through multiphase capabilities. It is suitable for applications needing dynamic brightness control via SPI rather than fixed hardware settings. Consider the thermal management requirements associated with the 24-QFN package for high-power LED loads. Verify that the input voltage range matches the vehicle's electrical system specifications.

Part Context

This part belongs to the NCV78702 series from onsemi, specifically engineered for automotive-grade LED lighting solutions. The series focuses on providing flexible, high-performance drive architectures for modern vehicle illumination standards. It represents a shift towards highly integrated controllers that minimize external component counts while maintaining robust diagnostic and safety features required in automotive environments.

Replacement Considerations

The NCV78702MW0BR2G is listed as an obsolete alternative with recommended replacement options available from the manufacturer. Designers should evaluate the NCV78702MW0AR2G as a potential substitute if transitioning from older revisions, ensuring pinout and functional compatibility remain consistent with the original design intent.
