NGB8207ABNT4G

Overview

The NGB8207ABNT4G is a single Insulated Gate Bipolar Transistor (IGBT) manufactured by onsemi, designed for high-voltage switching applications. It features an N-channel configuration with a collector-emitter breakdown voltage of 365 V and a continuous collector current rating of 20 A. The device is housed in a surface-mount D2PAK package, offering thermal efficiency suitable for compact designs. Key electrical characteristics include a maximum power dissipation of 165 W and specific unclamped collector-to-emitter avalanche energy ratings defined within its operational temperature range of -40°C to 150°C.

Feature Summary

• N-channel IGBT architecture optimized for high-voltage switching performance

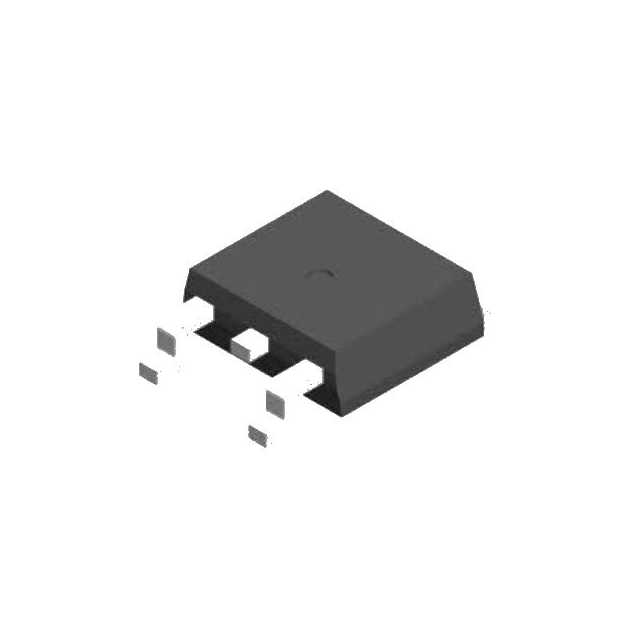

• Surface-mount D2PAK package design facilitating automated assembly and thermal management
• Defined unclamped collector-to-emitter avalanche energy capabilities for robust operation

Applications

• Automotive ignition systems
• Industrial motor control circuits
• High-voltage power supply inverters

Procurement Notes

Verify the exact ordering suffix 'T4G' against the manufacturer's current product database to ensure compliance with RoHS directives and specific tape-and-reel packaging requirements. Confirm that the D2PAK footprint matches the target PCB layout dimensions. Cross-reference the datasheet revision date to ensure all electrical parameter limits, particularly regarding thermal resistance and avalanche ratings, are up to date before finalizing component selection for production.

Selection Notes

Select this component when a 365 V blocking capability and 20 A current handling are required in a surface-mount form factor. The D2PAK package provides a balance between power density and thermal dissipation for medium-power applications. Ensure the gate drive circuitry supports the input capacitance and threshold voltage specifications typical of N-channel IGBTs. Evaluate the thermal impedance characteristics against the expected duty cycle and ambient operating conditions to maintain junction temperatures within safe limits.

Part Context

This part belongs to onsemi's lineup of discrete power semiconductors, specifically categorized under Single IGBTs. It is engineered for industrial and automotive markets where reliable high-voltage switching is critical. The NGB series typically targets applications requiring efficient power conversion and control, leveraging onsemi's silicon technology to deliver consistent performance across varying environmental conditions.

Replacement Considerations

Consult official cross-reference guides for direct pin-compatible alternatives with matching voltage and current ratings. Verify that any substitute maintains the same D2PAK package outline and thermal characteristics. Ensure the replacement device meets or exceeds the original's avalanche energy specifications if used in inductive load scenarios.
