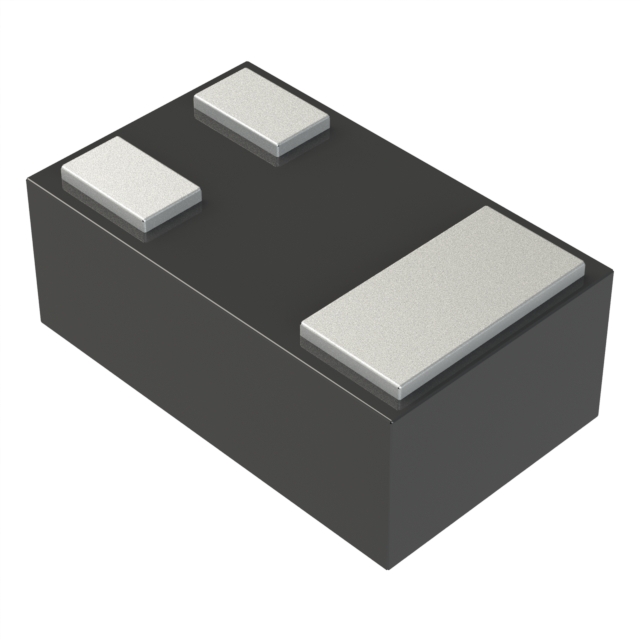

NST4617MX2T5G is listed in the Single Bipolar Transistors range at ChipApex. The manufacturer field lists onsemi. Its product description is TRANS NPN 50V 0.1A 3X2DFN. Review the specifications below when checking this part for your BOM.
Single Bipolar Transistors specifications for NST4617MX2T5G
- Description：TRANS NPN 50V 0.1A 3X2DFN
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transistor Type：NPN
- Current - Collector (Ic) (Max)：100 mA
- Voltage - Collector Emitter Breakdown (Max)：50 V
- Vce Saturation (Max) @ Ib, Ic：400mV @ 5mA, 60mA
- Current - Collector Cutoff (Max)：500nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce：120 @ 1mA, 6V
- Power - Max：166 mW
- Frequency - Transition：112MHz
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：3-XFDFN
- Supplier Device Package：3-X2DFN (1x0.6)
- Grade：-
- Qualification：-
Single Bipolar Transistors datasheet and documents for NST4617MX2T5G
Single Bipolar Transistors Overview
The NST4617MX2T5G is an NPN bipolar junction transistor manufactured by onsemi. It features a maximum collector current of 100 mA and a collector-emitter voltage rating of 50 V. The device is housed in an SOT-883 surface-mount package, designed for compact circuit implementations requiring reliable switching or amplification capabilities within these specified electrical limits.
Single Bipolar Transistors Feature Summary
- NPN bipolar junction transistor configuration
- 100 mA continuous collector current capability
- 50 V collector-emitter voltage rating
- SOT-883 surface-mount packaging
Single Bipolar Transistors Applications
- General-purpose switching circuits
- Amplifier stages
- Signal processing applications
Single Bipolar Transistors Procurement Notes
Verify the complete part number including the suffix to ensure correct tape-and-reel quantity and packaging specifications. Confirm RoHS compliance status through official documentation before integration. Cross-reference datasheet revisions to validate electrical characteristics against design requirements.
Single Bipolar Transistors Selection Notes
Select this component when an NPN BJT with 100 mA current handling and 50 V voltage tolerance is required in a small form factor. Ensure the application operates within the specified thermal and electrical boundaries defined in the official datasheet for optimal performance and reliability.
Single Bipolar Transistors Part Context
This component belongs to the general-purpose bipolar transistor category from onsemi. It serves as a discrete semiconductor device for electronic circuits, distinct from integrated circuits or power modules. The SOT-883 package provides a compact solution for space-constrained designs.
Single Bipolar Transistors Replacement Considerations
Consult official substitution guides for compatible NPN transistors with matching 100 mA and 50 V ratings in similar packages. Verify pinout compatibility and electrical parameters before replacing the original component.
