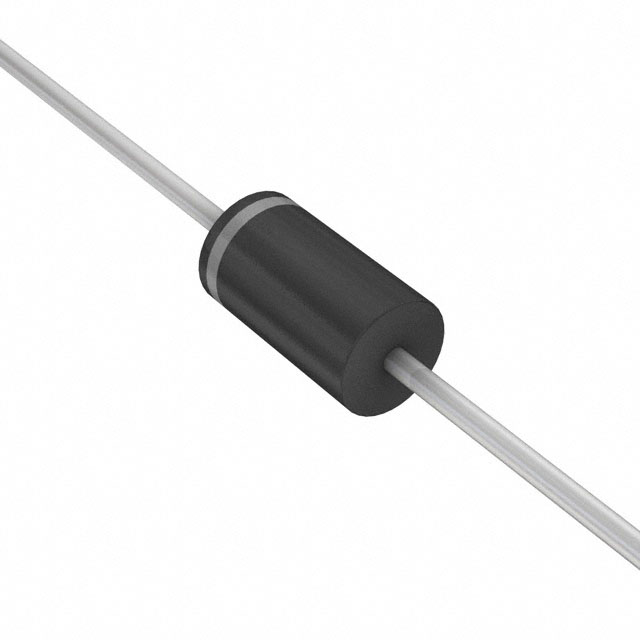

NUR460P/L01U

$0.10

Description：DIODE STANDARD 600V 4A DO201AD
Series：-
Mfr：WeEn Semiconductors
Package：Bulk

SKU:1f41fd875377 Category: Single Diodes Brand: WeEn Semiconductors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NUR460P/L01U is listed in the Single Diodes range at ChipApex. The manufacturer field lists WeEn Semiconductors. Its product description is DIODE STANDARD 600V 4A DO201AD. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for NUR460P/L01U

Description：DIODE STANDARD 600V 4A DO201AD
Series：-
Mfr：WeEn Semiconductors
Package：Bulk
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：4A
Voltage - Forward (Vf) (Max) @ If：1.05 V @ 3 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：75 ns
Current - Reverse Leakage @ Vr：10 µA @ 600 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：DO-201AD, Axial
Supplier Device Package：DO-201AD
Operating Temperature - Junction：175°C (Max)
Grade：-
Qualification：-

Single Diodes datasheet and documents for NUR460P/L01U

NUR460P/L01U

Single Diodes Overview

The NUR460P/L01U is an ultrafast power diode manufactured by WeEn Semiconductors, housed in a hermetically sealed SOD141 (DO-201AD) axial lead plastic package. It features a repetitive peak reverse voltage of 600 V and an average forward current rating of 4 A. The device exhibits a low forward voltage drop of 0.82 V at 3 A and 150 °C, with a maximum reverse recovery time of 50 ns under step recovery conditions.

Single Diodes Feature Summary

Fast switching capability with soft recovery characteristics
High voltage capability suitable for demanding power applications
Low forward voltage drop for improved efficiency
Low leakage current and thermal resistance

Single Diodes Applications

Discontinuous Current Mode (DCM) Power Factor Correction (PFC)
High frequency switched-mode power supplies

Single Diodes Procurement Notes

Verify the specific ordering suffix /L01U against official manufacturer documentation to confirm exact packaging or marking variations. Confirm component authenticity through authorized distribution channels. Ensure design compliance with absolute maximum ratings to prevent irreversible damage. Validate thermal management requirements based on junction-to-ambient resistance specifications provided in the datasheet.

Single Diodes Selection Notes

Select this component for circuits requiring high-voltage rectification with fast recovery times. The axial leaded package facilitates through-hole mounting. Evaluate thermal performance under expected load conditions to ensure junction temperatures remain within safe operating limits during continuous operation.

Single Diodes Part Context

This ultrafast power diode belongs to a family of components designed for general-purpose power switching applications. The SOD141 package provides a robust mechanical structure for axial lead installation. The product specification defines electrical parameters including reverse voltage, forward current, and dynamic recovery characteristics essential for power supply design.
