NUS5530MNR2G

$1.90

Description：IC MOSFET W/PNP SW TRANS 8-DFN
Series：-

SKU:6bf9c92a98bd Category: Special Purpose Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC MOSFET W/PNP SW TRANS 8-DFN
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Bulk
Transistor Type：PNP, P-Channel
Applications：General Purpose
Voltage - Rated：35V PNP, 20V P-Channel
Current Rating (Amps)：2A PNP, 3.9A P-Channel
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：8-VDFN Exposed Pad
Supplier Device Package：8-DFN (3.3x3.3)

Download product information

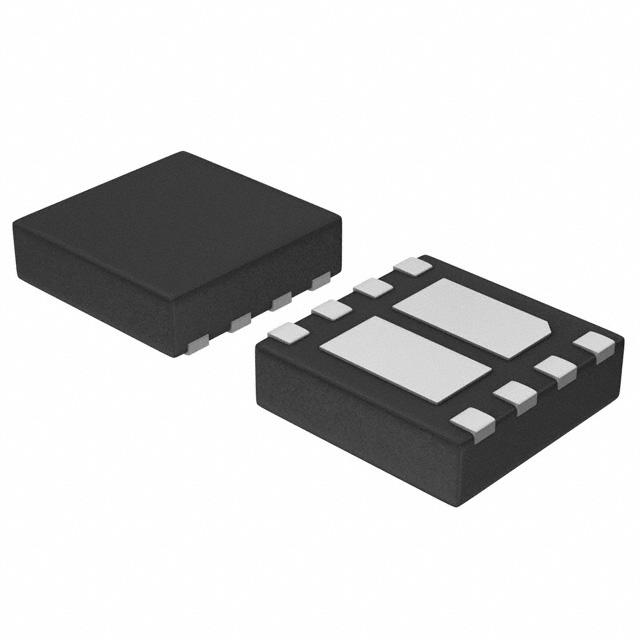

NUS5530MNR2G

Overview

The NUS5530MNR2G is an integrated power management component manufactured by onsemi. It combines a main switch Power MOSFET with a PNP low VCE(sat) switching transistor. This integration simplifies circuit design for USB charging port applications by consolidating power switching and commutation functions into a single package.

Feature Summary

Integrates a main switch Power MOSFET with a PNP switching transistor
Features low saturation voltage (VCE(sat)) in the PNP transistor
Designed for USB charging port power switching applications

Applications

USB charging port controllers
Power switching circuits
Battery charging systems

Procurement Notes

Verify the specific datasheet revision, as the source indicates a May 2006 publication date. Confirm pinout compatibility and thermal requirements against current design specifications. Ensure the component meets RoHS standards if required by the target application regulations.

Selection Notes

Select this component when a compact solution for USB port power management is needed. The integrated PNP transistor reduces external component count compared to discrete designs. Evaluate the low VCE(sat) benefit for efficiency in low-voltage switching scenarios.

Part Context

This part belongs to the NUS553x series of integrated power switches. It is functionally similar to the NUS5531MTR2G, which integrates dual charging BJTs instead of a single one. Both are designed for USB charging applications requiring efficient power path management.

Replacement Considerations

The NUS5531MTR2G serves as a related alternative within the same family, offering dual charging BJT integration. Verify functional equivalence regarding the number of integrated transistors before substitution.
