NVD5414NT4G

Single FETs, MOSFETs Overview

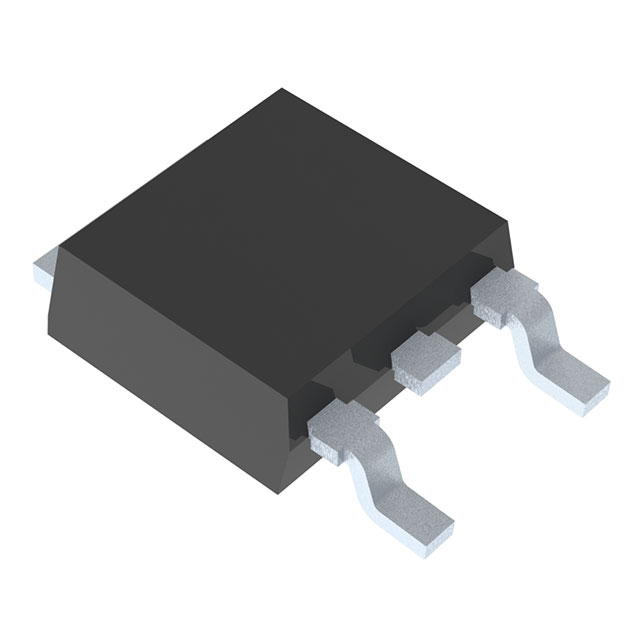

The NVD5414NT4G is an automotive-grade, surface-mount N-channel Power MOSFET manufactured by onsemi. It features a 60 V drain-source voltage rating and supports a continuous drain current of 24 A at case temperature. The device exhibits a maximum on-resistance of 37 mΩ at 10 V gate drive and 24 A. Key electrical parameters include a maximum gate charge of 48 nC at 10 V and input capacitance of 1200 pF at 25 V. It operates within a junction temperature range of -55°C to 175°C and dissipates up to 55 W. The component is housed in a DPAK-3 (TO-252-3) package and complies with the AEC-Q101 qualification standard.

Single FETs, MOSFETs Feature Summary

• Automotive-grade reliability certified under the AEC-Q101 standard for robust performance in vehicle environments.
• Integrated ESD protection circuitry designed to withstand high-voltage electrostatic discharge events.
• Optimized low on-resistance characteristics to minimize conduction losses and improve power efficiency.

Single FETs, MOSFETs Applications

• Automotive load switching applications
• High-side and low-side power distribution circuits
• DC motor control systems

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix against official documentation, as variations may exist. Confirm that the component meets the required AEC-Q101 automotive qualification standards for your target application. Ensure thermal management designs account for the specified power dissipation limits. Check for any recent product change notices or end-of-life announcements from the manufacturer before finalizing procurement plans.

Single FETs, MOSFETs Selection Notes

Select this component when designing circuits requiring a 60 V N-channel MOSFET with automotive certification. The 37 mΩ on-resistance makes it suitable for high-current applications where efficiency is critical. Verify that the DPAK-3 package fits the available PCB real estate and that the thermal resistance allows for adequate heat dissipation under expected operating conditions.

Single FETs, MOSFETs Part Context

This part belongs to the NVD5414 series of N-channel Power MOSFETs from onsemi. These devices are engineered for high-performance power switching in demanding environments. The series typically includes variants with different packaging or tape-and-reel configurations to suit various manufacturing requirements while maintaining consistent electrical performance and automotive reliability standards.

Single FETs, MOSFETs Replacement Considerations

Consult official cross-reference data for verified substitutes. Ensure any replacement maintains the same voltage, current, and on-resistance ratings. Verify that alternative components also meet AEC-Q101 requirements if used in automotive applications. Package compatibility must be confirmed to ensure proper mounting and thermal performance.
