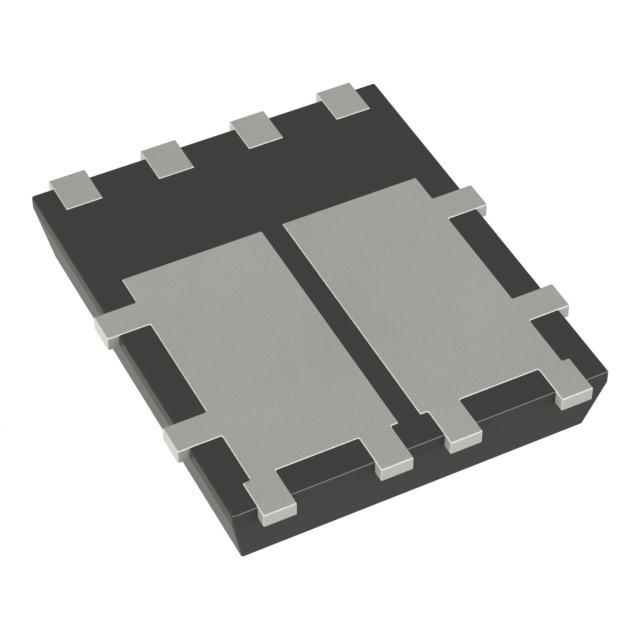

NVMFD5C668NLWFT1G

$3.11

Description：MOSFET 60V S08FL DUAL
Series：-

SKU:9cf25dce9475 Category: FET, MOSFET Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 60V S08FL DUAL
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：-
Configuration：-
FET Feature：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：-
Operating Temperature：-
Mounting Type：Surface Mount
Package / Case：8-PowerTDFN
Supplier Device Package：8-DFN (5x6) Dual Flag (SO8FL-Dual)
Grade：Automotive
Qualification：AEC-Q101

Download product information

NVMFD5C668NLWFT1G

Overview

The NVMFD5C668NLWFT1G is a dual N-channel enhancement mode MOSFET manufactured by onsemi. It features a 60V drain-source voltage rating and operates in the SO-8FL-Dual-8 surface-mount package. The device supports a continuous drain current of 15.5A at ambient temperature and 68A at case temperature, with a maximum power dissipation of 3W at ambient and 57.5W at case temperature. Key electrical parameters include a maximum on-resistance of 6.5mΩ at 20A and 10V, a gate charge of 21.3nC at 10V, and an input capacitance of 1440pF at 25V. It meets AEC-Q101 automotive qualification standards.

Feature Summary

Dual N-channel configuration for space-efficient circuit designs
Automotive-grade reliability certified under AEC-Q101 standards
Surface-mount construction with wettable flanks for enhanced optical inspection

Applications

Automotive power distribution systems
High-density PCB power switching applications
Industrial motor control circuits

Procurement Notes

Verify the complete part number including the suffix to ensure correct packaging and tape-and-reel specifications. Confirm that the component meets specific automotive quality requirements if used in safety-critical systems. Check for RoHS compliance status during sourcing. Ensure storage conditions align with moisture sensitivity level requirements before assembly.

Selection Notes

Select this component when a dual N-channel MOSFET with low on-resistance is required in a compact SO-8FL package. Consider the thermal performance limits at both ambient and case temperatures. Evaluate the gate charge and input capacitance values against the driving circuit capabilities to ensure efficient switching speeds.

Part Context

This component belongs to the NVMFD5C668NL series from onsemi. It is designed as a high-performance power switch alternative to traditional discrete solutions. The series targets applications requiring robust automotive-grade components in small form factors.

Replacement Considerations

Direct substitutes within the same series may offer similar electrical characteristics but different current ratings or package variations. Verify pin compatibility and thermal resistance values before substitution.
