NVMJS1D3N04CTWG

Single FETs, MOSFETs Overview

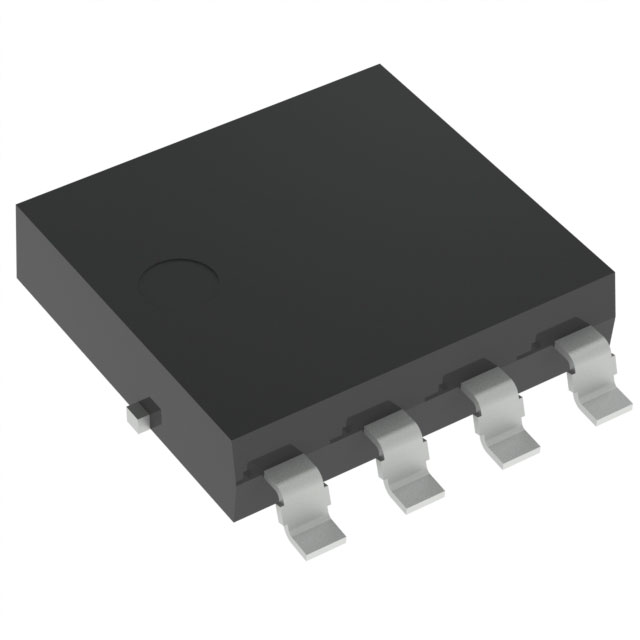

The NVMJS1D3N04CTWG is a single N-channel power MOSFET from onsemi, rated for a drain-to-source voltage of 40 V. It features a maximum continuous drain current of 235 A at TC = 25 °C and a typical on-resistance (RDS(on)) of 1.3 mΩ at VGS = 10 V and ID = 50 A. The device utilizes an LFPAK8 package with dimensions of 5x6 mm. It is qualified to AEC-Q101 standards and supports junction temperatures up to +175 °C.

Single FETs, MOSFETs Feature Summary

• LFPAK8 package provides a small footprint for compact design
• Low RDS(on) minimizes conduction losses
• Low QG and capacitance reduce driver losses
• AEC-Q101 qualified and PPAP capable

Single FETs, MOSFETs Applications

• Automotive electronics requiring high reliability
• Power conversion circuits
• Motor drive applications

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix 'TWG' confirms Pb-Free, Halogen Free/BFR Free, and RoHS compliance status. Confirm the package type matches the required LFPAK8 form factor. Ensure the component meets AEC-Q101 qualification requirements for your target application environment.

Single FETs, MOSFETs Selection Notes

Select this component when a low-profile surface-mount solution is needed for 40 V systems. The LFPAK8 package offers thermal performance suitable for high-current applications. Verify that the gate charge characteristics align with your driver capabilities for optimal switching efficiency.

Single FETs, MOSFETs Part Context

This part belongs to the NVMJS1D3N04C series of single N-channel MOSFETs. It is designed for automotive and industrial applications where space constraints and thermal management are critical. The LFPAK8 package is an industry-standard footprint facilitating PCB layout flexibility.

Single FETs, MOSFETs Replacement Considerations

Check datasheets for alternative parts offering similar 40 V ratings and LFPAK8 packaging. Verify pinout compatibility and thermal resistance values before substitution.
