NVTFWS007N08HLTAG

$1.59

Description：80V T8 IN U8FL HEFET PACK
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d60966fbebd9 Category: Single FETs, MOSFETs Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

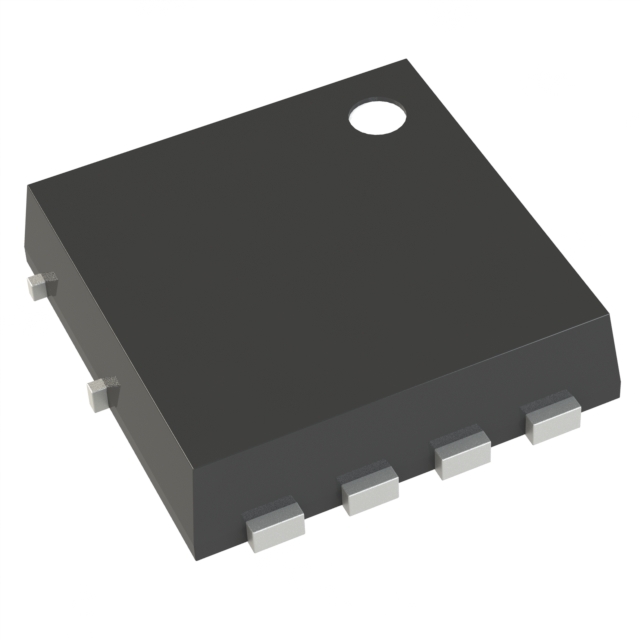

NVTFWS007N08HLTAG is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists onsemi. Its product description is 80V T8 IN U8FL HEFET PACK. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for NVTFWS007N08HLTAG

Description：80V T8 IN U8FL HEFET PACK
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：80 V
Current - Continuous Drain (Id) @ 25°C：14.4A (Ta), 71A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：7mOhm @ 16A, 10V
Vgs(th) (Max) @ Id：3V @ 270µA
Gate Charge (Qg) (Max) @ Vgs：32.5 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1810 pF @ 40 V
FET Feature：-
Power Dissipation (Max)：3.3W (Ta), 79W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Surface Mount
Supplier Device Package：8-WDFNW (3.3x3.3)
Package / Case：8-PowerWDFN

Single FETs, MOSFETs datasheet and documents for NVTFWS007N08HLTAG

NVTFWS007N08HLTAG

Single FETs, MOSFETs Overview

The NVTFWS007N08HLTAG is an N-channel power MOSFET from onsemi, housed in a WDFNW8 (3.3x3.3 mm) surface-mount package with wettable flank terminals. It features a drain-to-source voltage of 80 V and a maximum continuous drain current of 71 A at TC = 25°C. The device exhibits a low on-resistance of 7 mΩ at VGS = 10 V and ID = 16 A. Total gate charge is 32.5 nC at VGS = 10 V. It operates within a junction temperature range of -55°C to +175°C.

Single FETs, MOSFETs Feature Summary

Wettable flank option for enhanced optical inspection
AEC-Q101 qualified and PPAP capable
Low RDS(on) to minimize conduction losses
Low QG and capacitance to minimize driver losses

Single FETs, MOSFETs Applications

Automotive electronics
Compact design applications
High-efficiency power conversion

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix 'TAG' corresponds to the WDFNW8 package with wettable flanks and tape-and-reel shipping configuration. Confirm that the application environment supports the specified thermal resistance values and steady-state current ratings. Ensure compliance with RoHS and halogen-free requirements as stated in the datasheet.

Single FETs, MOSFETs Selection Notes

Select this component when a compact footprint and high reliability are required. The wettable flank feature facilitates automated optical inspection during manufacturing. Consider the thermal management capabilities based on the junction-to-case resistance. Validate electrical parameters against the specific operating conditions of the target circuit.

Single FETs, MOSFETs Part Context

This part belongs to the NVTFS007N08HL family of single N-channel MOSFETs. The 'W' in the model number indicates the inclusion of wettable flank terminals, distinguishing it from standard variants. It is designed for automotive-grade applications requiring robust performance in space-constrained environments.
