Product Detailed Parameters
- Description：GEN1.5 1500V MASS MARKET
- Series：-
- Mfr：onsemi
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Level Inverter
- Vce(on) (Max) @ Vge, Ic：2.3V @ 15V, 375A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：42-PIM/Q2PACK (93x47)
- Voltage - Collector Emitter Breakdown (Max)：1000 V
- Current - Collector (Ic) (Max)：303 A
- Power - Max：592 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：24.146 nF @ 20 V
Download product information
Overview

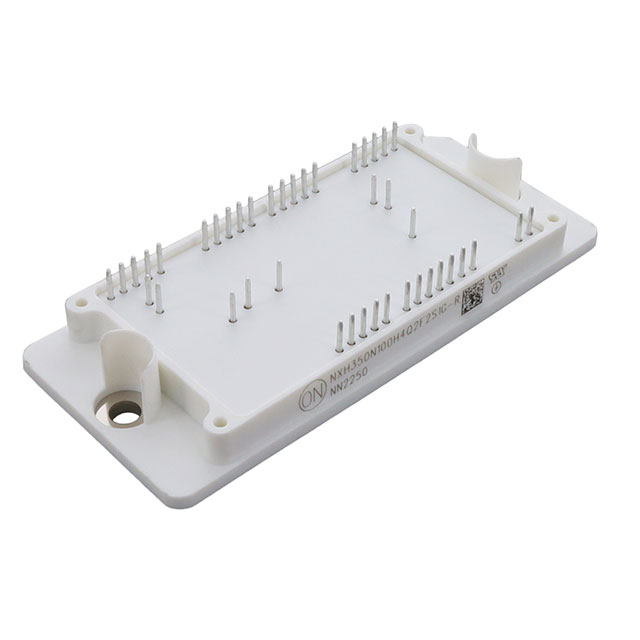

The NXH350N100H4Q2F2S1G-R is a Si/SiC hybrid power module from onsemi, utilizing EliteSiC technology in a Q2PACK (PIM42) package with solder pins. It integrates trench field-stop IGBTs and anti-parallel diodes for an I-type NPC topology. Key electrical ratings include a collector-emitter voltage of 1000 V, continuous collector currents of 303 A (outer) and 298 A (inner), and peak currents up to 909 A. The module features a neutral point diode rated at 1200 V and includes an integrated NTC thermistor for thermal monitoring.
Feature Summary
- Combines high-performance IGBTs with rugged anti-parallel diodes for high-density integration
- Utilizes extremely efficient Trench with Field Stop Technology to reduce switching losses
- Features a low inductive layout and low package height design
- Includes an integrated NTC thermistor for real-time temperature monitoring
Applications
- Solar Inverters
- Uninterruptable Power Supplies Systems
Procurement Notes
Verify the specific ordering suffix '-R' against the manufacturer's documentation to confirm it denotes reel packaging or specific shipping variations within the Q2PACK family. Ensure that the solder pin configuration matches the target PCB footprint requirements. Cross-reference the RoHS compliance status directly with the latest datasheet revision to ensure adherence to current environmental standards.
Selection Notes
Select this module for applications requiring a 1000 V rating with high current capacity in a compact form factor. The integrated NTC thermistor simplifies thermal management strategies by providing direct junction temperature feedback. Evaluate the thermal resistance values relative to the heatsink interface material thickness to ensure adequate heat dissipation under maximum load conditions.
Part Context
This component belongs to the NXH350N100H4Q2F2 series, which encompasses variants with press-fit or solder pin terminations. The 'S1G' designation indicates the solder pin version, while the '-R' suffix typically refers to the shipping format. All variants share identical internal semiconductor structures and electrical characteristics defined in the official datasheet.
Replacement Considerations
NXH350N100H4Q2F2S1G
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175°C.
Does the module include thermal monitoring?
Yes, it includes an integrated NTC thermistor with a nominal resistance of 22 kΩ at 25°C.
What is the isolation test voltage?
The isolation test voltage is 4000 VRMS for a duration of 1 second at 50 Hz.
