Product Detailed Parameters
- Description：N06NF Q2BOOST#1
- Series：-
- Mfr：onsemi
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Level Inverter
- Vce(on) (Max) @ Vge, Ic：2.3V @ 15V, 200A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：50-PIM (93x47)
- Voltage - Collector Emitter Breakdown (Max)：1000 V
- Current - Collector (Ic) (Max)：164 A
- Power - Max：396 W
- Current - Collector Cutoff (Max)：10 µA
- Input Capacitance (Cies) @ Vce：12687.7 pF @ 20 V
Download product information
Overview

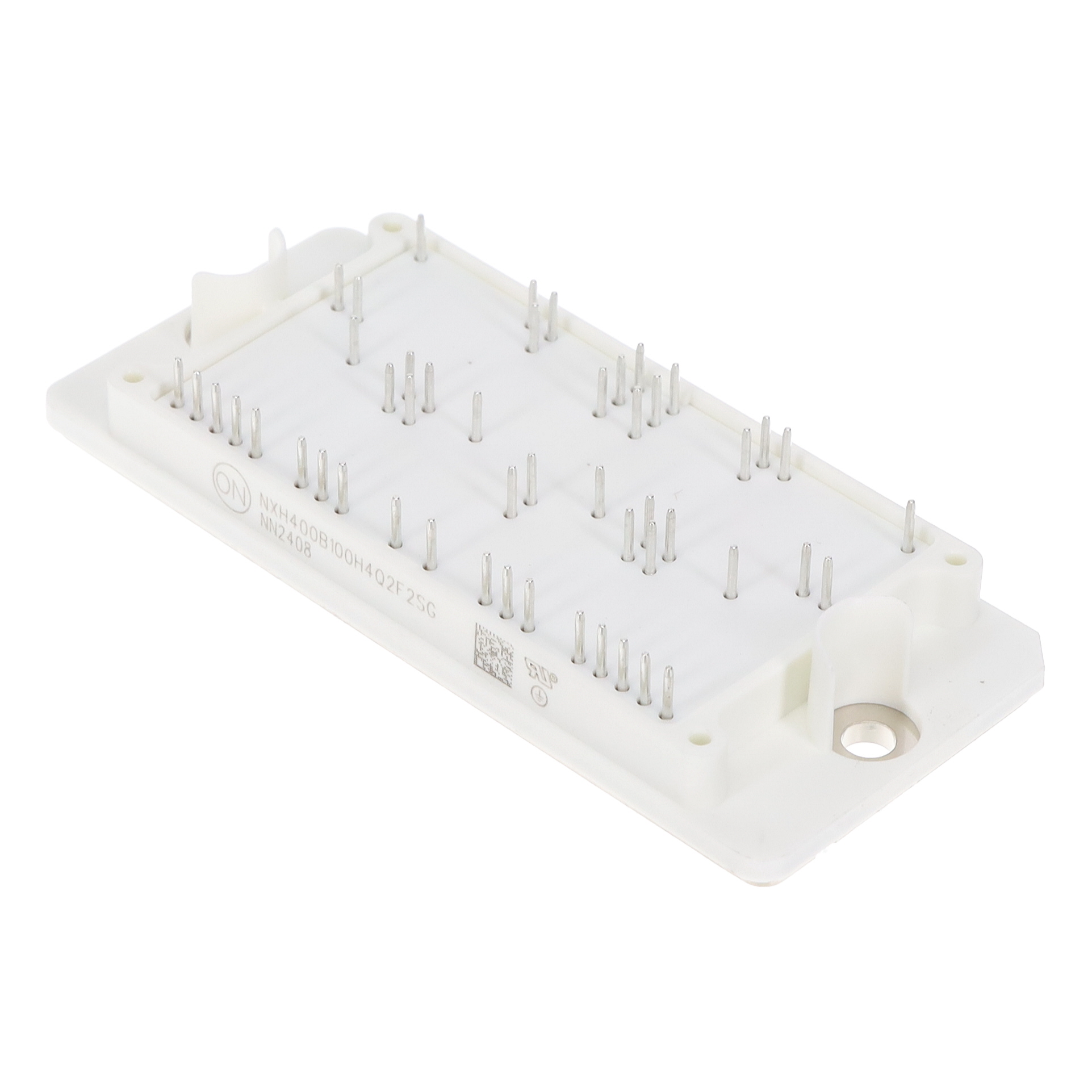

The NXH400B100H4Q2F2SG is a Q2BOOST power module containing two-channel flying capacitor boost circuits. It integrates field stop trench IGBTs and SiC Schottky diodes within a PIM50 package (93x47 mm). The device features a collector-emitter voltage of 1000 V, a continuous collector current of 164 A at Tc=80°C, and a maximum power dissipation of 396 W. Operating junction temperatures range from -40°C to 175°C, with an isolation test voltage of 4000 VRMS.
Feature Summary
- Integrates field stop trench IGBTs and 1200 V SiC diodes for reduced conduction and switching losses.
- Features a low inductive layout optimized for high-frequency operation.
- Includes an integrated NTC thermistor for thermal monitoring.
Applications
- Solar Inverters
- Energy Storage Systems
Procurement Notes
Verify the specific ordering suffix 'SG' confirms solder pin configuration rather than press-fit pins. Confirm RoHS compliance status and assembly site codes via official documentation before procurement. Ensure thermal interface material specifications match the required thermal resistance values for your application design.
Selection Notes
Select this module for applications requiring high-efficiency boost conversion with integrated thermal sensing. Compare the 164 A continuous current rating against peak load requirements. Evaluate the 1000 V blocking capability against system DC bus voltages. Consider the PIM50 footprint constraints during mechanical design.
Part Context
This component belongs to onsemi's Q2BOOST series, designed specifically for flying capacitor boost topologies. It utilizes EliteSiC technology to combine silicon IGBTs with silicon carbide diodes. The module is part of a broader family including variants with different pin configurations like the PG suffix.
Replacement Considerations
NXH400B100H4Q2F2PG is the direct alternative with press-fit pins instead of solder pins. Verify pin compatibility and mounting hardware differences when substituting. Electrical characteristics remain identical between the SG and PG variants.
