NXH400N100H4Q2F2SG

Overview

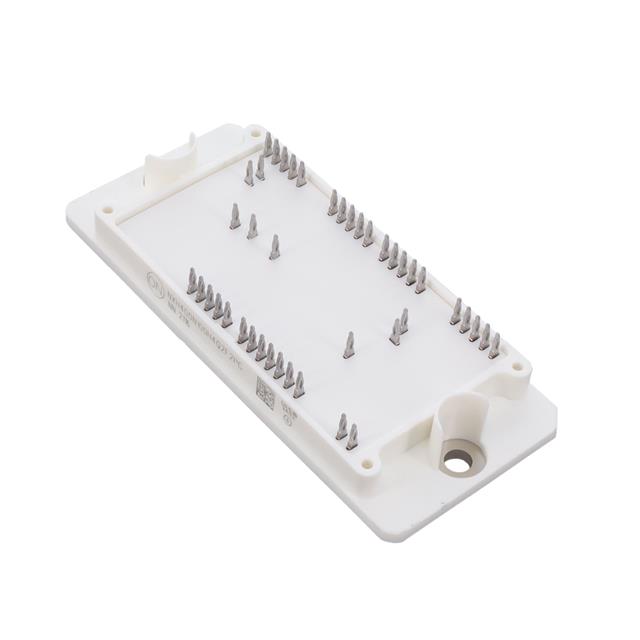

The NXH400N100H4Q2F2SG is a three-level Neutral Point Clamped (NPC) IGBT module manufactured by onsemi. It utilizes silicon technology and features solder pin termination within the Q2PACK package. The device supports a collector-emitter maximum voltage of 1000 V and operates with a continuous collector current of 350 A at 25°C. Key electrical parameters include a collector-emitter saturation voltage of 1.69 V, a gate-emitter leakage current of 2 µA, and a power dissipation rating of 714 W. The module functions reliably across an operating temperature range from -40°C to +175°C.

Feature Summary

• Three-level NPC topology for high-efficiency power conversion
• Silicon-based IGBT technology optimized for industrial applications
• Robust thermal management capabilities within the Q2PACK form factor

Applications

• Industrial motor drives
• Uninterruptible power supplies
• High-frequency inverters

Procurement Notes

Verify the specific suffix against official datasheets to confirm terminal configuration and compliance status. Ensure compatibility with existing thermal interface materials and mounting hardware. Cross-reference part numbers with manufacturer discontinuance notices to avoid obsolescence risks during long-term production cycles.

Selection Notes

Select this component for designs requiring high current density and low conduction losses in three-level topologies. Evaluate thermal resistance values against heat sink specifications to maintain junction temperatures within safe limits. Confirm that gate drive voltages align with the specified maximum ratings to prevent device degradation.

Part Context

This module belongs to the NXH series of discrete semiconductor modules designed for demanding power electronics environments. It represents onsemi's focus on high-performance silicon solutions for medium-voltage applications. The Q2PACK packaging standardizes mechanical integration for various industrial power systems.

Replacement Considerations

Direct substitutes may include other three-level NPC modules from the same family, such as the NXH400N100L4Q2F2SG or NXH350N100H4Q2F2S1G. Verify pinout compatibility and electrical parameter overlaps before implementation.
