Product Detailed Parameters
- Description：150KW 1100V Q2PACK SOLDER PIN
- Series：-
- Mfr：onsemi
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Level Inverter
- Vce(on) (Max) @ Vge, Ic：2.2V @ 15V, 600A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：41-PIM/Q2PACK (93x47)
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：483 A
- Power - Max：931 W
- Current - Collector Cutoff (Max)：100 µA
- Input Capacitance (Cies) @ Vce：37.1 nF @ 20 V
Download product information
Overview

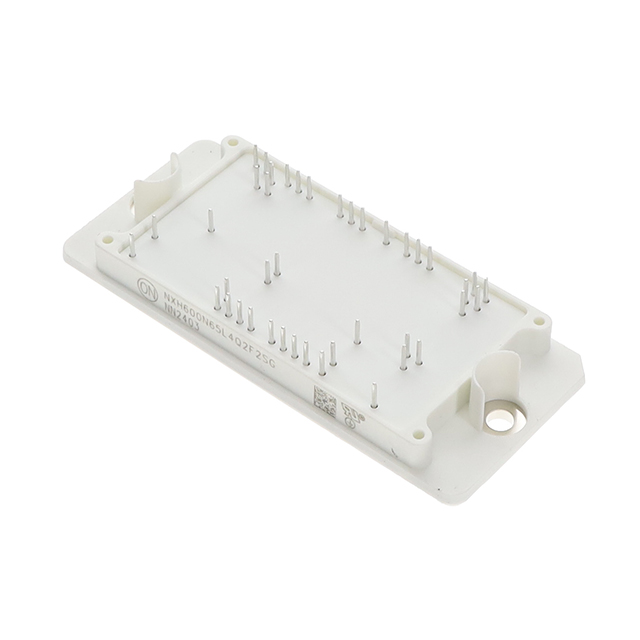

The NXH600N65L4Q2F2SG is a power module containing an I-type neutral point clamped three-level inverter. It integrates Field Stop 4 trench IGBTs and FRDs to reduce conduction and switching losses. The outer IGBTs (T1, T4) have a collector-emitter voltage of 650 V and a continuous collector current of 483 A at Tc = 80 °C. The inner IGBTs (T2, T3) feature a continuous collector current of 314 A under the same conditions. The module operates within a junction temperature range of -40 °C to 175 °C and utilizes a PIM41 package with solderable pins.
Feature Summary
- I-type neutral point clamped three-level inverter topology
- Integrated Field Stop 4 trench IGBTs and FRDs for optimized efficiency
- Low inductive layout design
- Built-in thermistor for thermal monitoring
Applications
- Solar Inverters
- Uninterruptable Power Supplies Systems
- Energy Storage System
Procurement Notes
Verify the specific ordering suffix 'SG' corresponds to the Q2PACK package with Pb-Free and Halide-Free solderable pins. Confirm the shipping quantity matches the blister tray configuration of 12 units per tray as defined in the official onsemi documentation. Ensure compliance with RoHS standards during procurement.
Selection Notes
Select this component for applications requiring high-efficiency three-level inversion. Verify that the system's thermal management can maintain the case temperature at or below 80 °C to support the rated continuous collector currents. Ensure gate drive voltages remain within the specified ±15 V operational limits to prevent device damage.
Part Context
This part belongs to the NXH600N65L4Q2F2 series from onsemi. The 'SG' suffix specifically denotes the version equipped with solderable pins housed in a Q2PACK (PIM41) format. This distinguishes it from the 'PG' variant which utilizes press-fit pins within the same physical footprint.
Replacement Considerations
NXH600N65L4Q2F2PG is a parameter-equivalent alternative offering identical electrical characteristics but utilizing press-fit pins instead of solderable pins.
