Product Detailed Parameters
- Description：IGBT MODULE, 1IN1, CHOPPER CIRCU
- Series：-
- Mfr：KYOCERA AVX
- Package：Bulk
- IGBT Type：-
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：2V @ 15V, 200A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：200 A
- Power - Max：961 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：19000 pF @ 25 V
Download product information
Overview

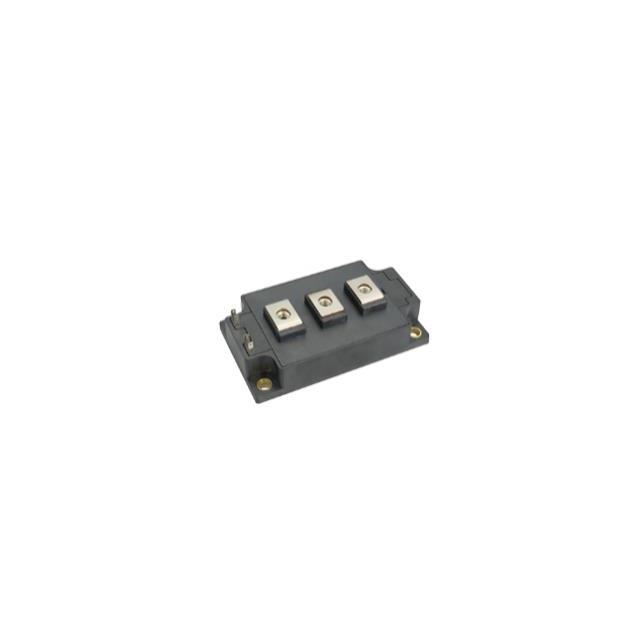

The PCFMB200W12 is a power semiconductor module manufactured by KYOCERA AVX. It features an IGBT with an integrated Fast Recovery Diode (FRD) in a 1-in-1 Chopper Circuit configuration. The device has a maximum collector-emitter voltage rating of 1200V and a continuous collector current capacity of 200A. Designed for high-power applications, it utilizes surface-mount technology within a robust package structure to ensure reliable thermal and electrical performance under demanding operating conditions.
Feature Summary
- Integrates IGBT and FRD in a single chopper circuit topology
- Rated for 1200V blocking voltage and 200A continuous current
- Engineered for high-power density switching applications
Applications
- Industrial motor drives
- High-power DC-DC converters
- Uninterruptible power supplies (UPS)
Procurement Notes
Verify the specific datasheet version and mechanical drawing dimensions prior to procurement. Confirm that the thermal interface material and mounting torque specifications align with your system design requirements. Ensure the supply chain source provides valid traceability documentation for this power module series.
Selection Notes
Select this component when a compact, high-current chopper solution is required. Evaluate the thermal resistance characteristics against your heatsink design to maintain junction temperatures within safe limits. Consider the switching speed and reverse recovery characteristics of the integrated FRD for EMI management in the target circuit.
Part Context
This part belongs to the PCFMB series of power modules from KYOCERA AVX. These modules are designed to replace discrete component solutions, offering reduced parasitic inductance and improved reliability. The series targets applications requiring high efficiency and compact form factors in power conversion systems.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official KYOCERA AVX resources or authorized distributors for cross-reference data.
