PCFMB400W12

Overview

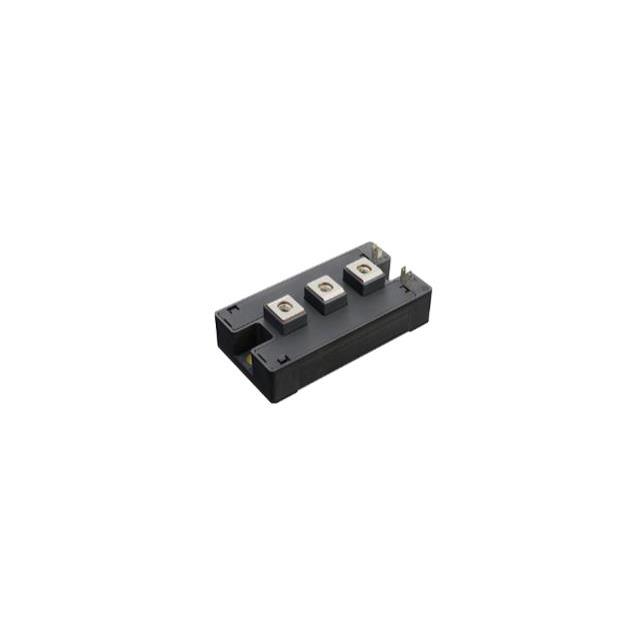

The PCFMB400W12 is a single-channel IGBT module manufactured by KYOCERA AVX. It features a maximum gate-emitter voltage of 20 V and is designed for screw mount installation. The module supports a continuous current of 400 A at a blocking voltage of 1200 V, with a total power rating of 1920 W. This component is classified as an insulated gate bipolar transistor module intended for high-power electronic applications requiring robust switching capabilities.

Feature Summary

• Single-channel configuration for direct control applications
• High current handling capability up to 400 A
• Robust insulation gate bipolar transistor technology
• Screw mount design for secure mechanical attachment

Applications

• Industrial motor drives
• Power conversion systems
• Inverter circuits

Procurement Notes

Verify the specific package type and thermal characteristics against your heatsink requirements before ordering. Confirm that the 20 V gate drive limits align with your controller output. Ensure the mounting hardware matches the screw mount specification. Check for any updated datasheets regarding derating curves at elevated temperatures.

Selection Notes

Select this module when a single-phase or half-bridge configuration is sufficient for the load. Consider the 1200 V rating for medium-voltage AC lines. Evaluate the 400 A limit against peak and RMS currents. Compare thermal resistance values with alternative modules if space constraints exist.

Part Context

This part belongs to the IGBT module category within KYOCERA AVX's portfolio. It serves as a core switching element in power electronics. The manufacturer provides technical documentation detailing absolute maximum ratings and electrical characteristics. These documents are essential for proper circuit design and integration into larger power systems.
