PD100MYN18

Overview

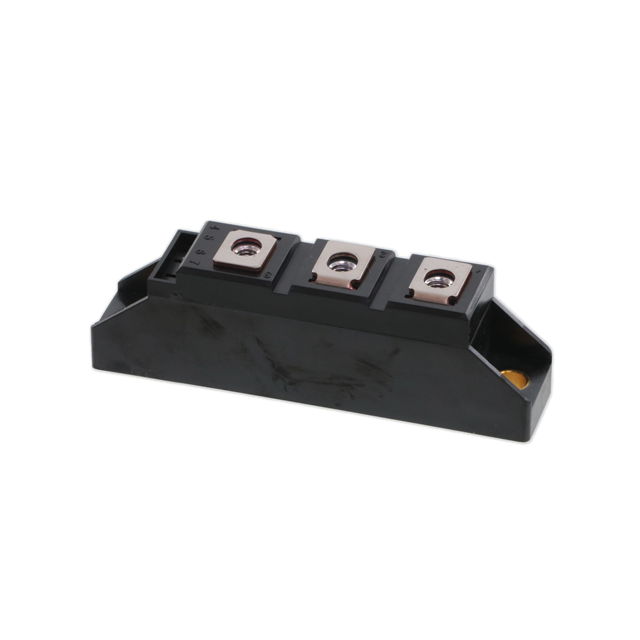

The PD100MYN18 is a discrete semiconductor diode module manufactured by KYOCERA AVX. It functions as a phase leg diode array featuring dual series-connected pairs. The component supports a maximum repetitive peak reverse voltage of 1800 V and a continuous forward current rating of 100 A. It utilizes a chassis mount configuration with seven pins for secure installation. The device incorporates standard recovery technology with a forward voltage drop of approximately 1.35 V at 300 A. It operates within a junction temperature range up to 150°C and withstands surge currents of 2 kA.

Feature Summary

• Dual series-connected diode pair architecture designed for phase leg applications
• High voltage blocking capability rated at 1800 V
• Robust thermal management suitable for chassis mounting environments
• Standard recovery characteristics optimized for general power conversion

Applications

• Industrial motor drive systems
• Inverter circuits in renewable energy converters
• High-power DC-AC conversion stages

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with existing thermal interface materials and mounting hardware specifications. Check for any obsolescence notices or lifecycle status updates directly from the manufacturer before finalizing procurement plans.

Selection Notes

Select this module for applications requiring high voltage isolation and significant current handling capacity in a compact form factor. Consider the chassis mount requirement and thermal dissipation needs when designing the heat sink interface. Evaluate the standard recovery speed against switching frequency requirements to ensure efficient operation without excessive losses.

Part Context

This component belongs to the discrete semiconductor product category, specifically within the diode array and rectifier modules segment. It serves as a critical switching element in power electronics, providing unidirectional current flow and voltage blocking. The module format integrates multiple die packages into a single unit for improved reliability and simplified assembly in high-power systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference data through official manufacturer channels or authorized distributors to identify compatible alternatives with matching electrical ratings and mechanical footprints.
