PD200MYN18

Overview

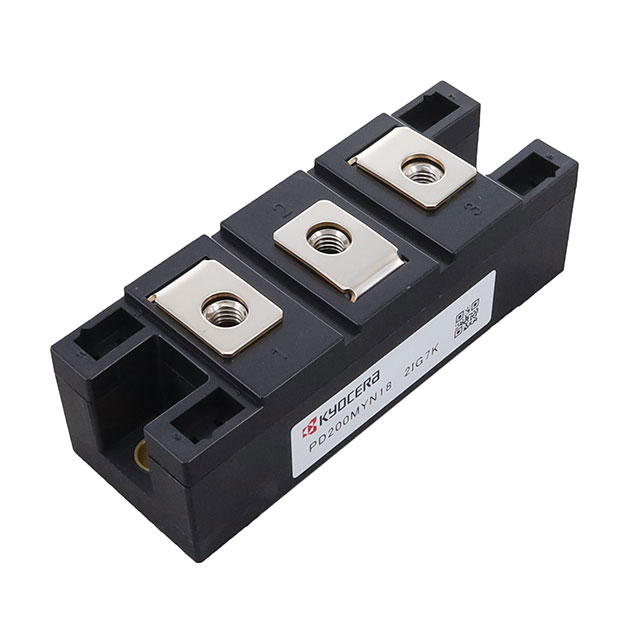

The KYOCERA AVX PD200MYN18 is a dual series diode module designed for high-power applications. It features a reverse voltage rating of 1.8 kV and a continuous forward current capacity of 200 A. The device exhibits a forward voltage drop of 1.5 V at rated conditions. It operates within a minimum temperature range of -40 C, ensuring reliability in demanding thermal environments.

Feature Summary

• Dual series configuration for enhanced power handling
• High voltage blocking capability up to 1.8 kV
• Robust 200 A current carrying capacity

Applications

• Industrial motor drives
• Power conversion systems
• High voltage rectification circuits

Procurement Notes

Verify the specific datasheet revision and mechanical drawing dimensions prior to integration. Confirm thermal management requirements align with the module's dissipation characteristics. Ensure mounting hardware compatibility with the three-pin package structure. Validate that system voltage spikes remain within the 1.8 kV rating under all operating transients.

Selection Notes

Select this module when high current and high voltage are required in a compact form factor. The dual series arrangement allows for efficient power processing. Consider thermal resistance and cooling solutions to maintain junction temperatures within safe limits during continuous 200 A operation.

Part Context

This component belongs to KYOCERA AVX's diode module portfolio, targeting industrial and energy conversion markets. It provides a robust solution for applications requiring significant power throughput. The design integrates multiple semiconductor elements into a single reliable package.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
