PE-W22PS1001

Overview

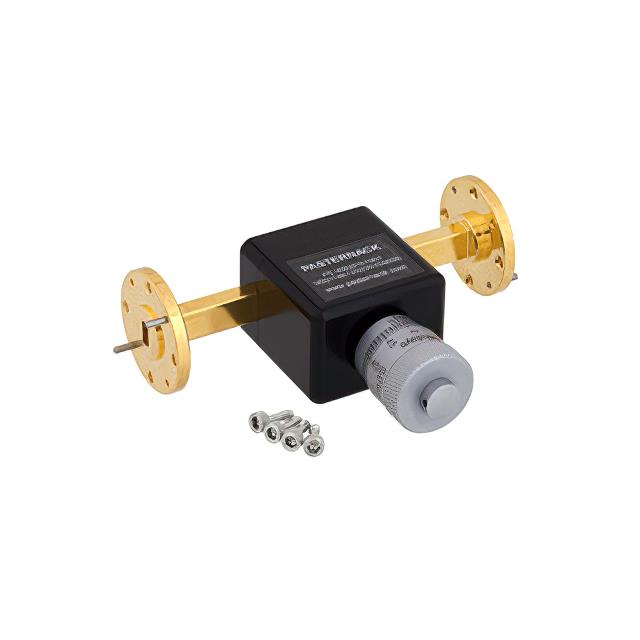

The PE-W22PS1001 is a WR-22 waveguide phase shifter manufactured by Pasternack Enterprises Inc. It provides a phase shift range of 0 to 180 degrees within the frequency band of 33 GHz to 50 GHz. The device features an insertion loss of 1 dB and supports a power handling capacity of 1 W. It utilizes a UG-383/U round cover interface for connection.

Feature Summary

• Provides continuous phase adjustment from 0 to 180 degrees
• Operates within the WR-22 waveguide frequency range of 33 GHz to 50 GHz
• Constructed with a UG-383/U round cover interface

Applications

• Microwave communication systems
• Radar signal processing
• Satellite ground station equipment

Procurement Notes

Verify the specific model suffix and connector type against the official datasheet before procurement. Ensure that the operating environment matches the specified power and frequency limits. Confirm mechanical compatibility with existing WR-22 waveguide infrastructure. Request test reports if precise phase linearity data is required for critical applications.

Selection Notes

Select this component when a fixed 0 to 180-degree phase shift is required in the E-band spectrum. Consider the 1 dB insertion loss impact on system gain budget. Evaluate the physical dimensions and weight relative to available space in the waveguide assembly. Compare performance metrics against alternative phase shifters if lower loss or different phase ranges are needed.

Part Context

This component belongs to Pasternack's series of waveguide phase shifters, which includes models such as PE-W15PS1001 and PE-W19PS1001. These devices are designed for high-frequency microwave applications requiring precise phase control. The product line supports various waveguide sizes to accommodate different frequency bands.

Replacement Considerations

Direct substitutes include other Pasternack waveguide phase shifters like PE-W15PS1001 or PE-W19PS1001, provided the waveguide size and frequency range match the application requirements. Verify that any replacement maintains the same phase shift range and power handling capabilities.
