PE-W42PS1001

Overview

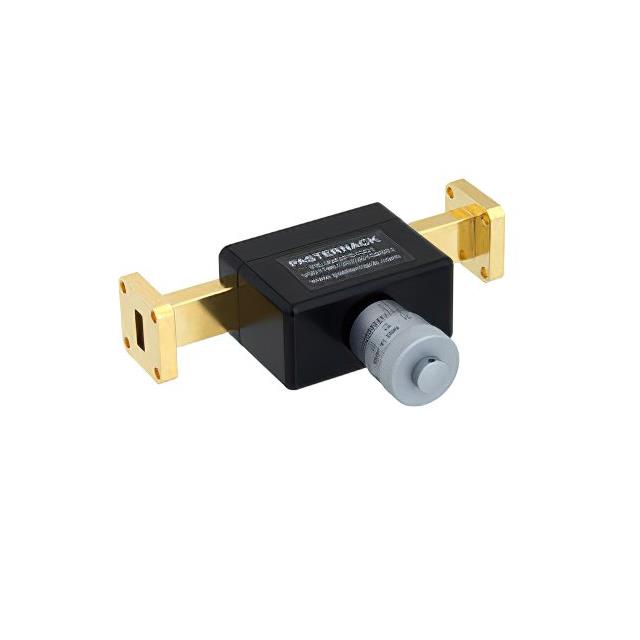

The PE-W42PS1001 is a WR-42 waveguide phase shifter manufactured by Pasternack. It operates within the frequency range of 18 GHz to 26.5 GHz and provides a mechanical phase shift capability from 0 to 180 degrees. The component features UG-595/U flanges for secure waveguide interface connections. Key electrical specifications include an insertion loss of 1 dB and a power handling capacity of 1.5 W. This device is designed for signal conditioning applications requiring precise phase adjustment in high-frequency radio frequency systems.

Feature Summary

• Provides continuous mechanical phase adjustment ranging from 0 to 180 degrees
• Operates effectively across the 18 GHz to 26.5 GHz frequency spectrum
• Utilizes standard UG-595/U flanges for reliable waveguide integration

Applications

• Radio frequency signal conditioning systems
• General purpose RF wireless infrastructure
• Waveguide network phase alignment

Procurement Notes

Verify the specific UG-595/U flange configuration and WR-42 compatibility before procurement. Confirm that the 1.5 W power rating aligns with system requirements. Ensure the operating frequency range covers the intended application bandwidth. Check for any specific mounting or torque requirements associated with the flange interfaces to maintain signal integrity.

Selection Notes

Select this component when a fixed WR-42 form factor is required for phase shifting between 18 and 26.5 GHz. Consider the 1 dB insertion loss impact on overall system gain. Evaluate the 1.5 W power limit against peak signal levels. Compare against other Pasternack waveguide components like attenuators or bends if additional signal manipulation is needed alongside phase control.

Part Context

This part belongs to the WR-42 waveguide component family from Pasternack, which includes various passive devices such as attenuators, bends, and twists. These components are standardized for K-band applications. The PE-W42PS1001 specifically addresses phase control needs within this standardized waveguide ecosystem, complementing other passive elements in complex RF chain designs.

Replacement Considerations

Direct substitutes may include other manufacturers' WR-42 phase shifters with identical UG-595/U flanges and matching 18-26.5 GHz specifications. Verify dimensional tolerances and flange mating surfaces to ensure interchangeability without modification.
