PE1613

Overview

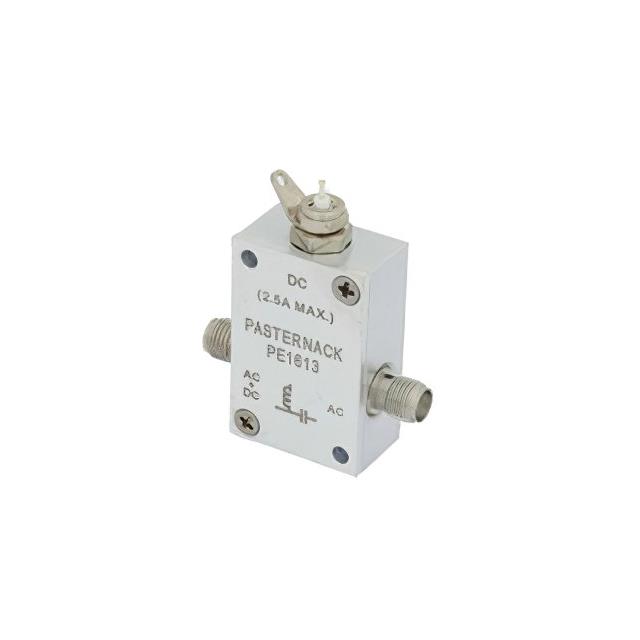

The Pasternack PE1613 is an SMA bias tee designed for RF signal conditioning within a frequency range of 10 MHz to 4 GHz. It features a female SMA connector on the RF port and supports a maximum DC voltage of 100 Volts and a current rating of 2,500 mA. The component maintains a maximum VSWR of 1.5:1. This adapter integrates DC injection capabilities into standard coaxial systems, ensuring signal integrity across its specified operational bandwidth while handling substantial DC power loads.

Feature Summary

• Integrates DC bias injection with RF signal transmission via a single coaxial interface
• Supports high DC current capacity up to 2,500 mA for powered device applications
• Maintains low voltage standing wave ratio for minimal signal reflection
• Utilizes robust SMA connector geometry for reliable mechanical mating

Applications

• Biasing active RF components such as amplifiers and oscillators
• Signal conditioning in test and measurement equipment
• Integration into microwave subsystems requiring combined DC and RF paths
• Communication system hardware development

Procurement Notes

Verify that the specific order matches the Pasternack PE1613 designation to ensure correct SMA gender and electrical ratings. Confirm compatibility with system voltage and current limits before integration. Review official datasheets for precise impedance characteristics and frequency response curves. Ensure storage and handling procedures protect the connector interfaces from contamination.

Selection Notes

Select this component when a compact solution is required to combine DC power with RF signals in the 10 MHz to 4 GHz range. Consider the 100V DC limit and 2,500mA current capacity against load requirements. Evaluate the 1.5:1 VSWR specification for signal fidelity needs. Ensure the SMA interface aligns with existing cable assemblies and module ports.

Part Context

The PE1613 belongs to Pasternack's portfolio of RF interconnect and signal conditioning products. Bias tees are essential passive components used to separate or combine DC and AC signals. This model specifically addresses applications where space constraints and performance stability are critical, serving as a bridge between power supplies and RF circuitry.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and electrical specifications carefully if considering alternative manufacturers. Ensure replacement components match the SMA interface type and DC/RF isolation requirements.
