PE1614

Overview

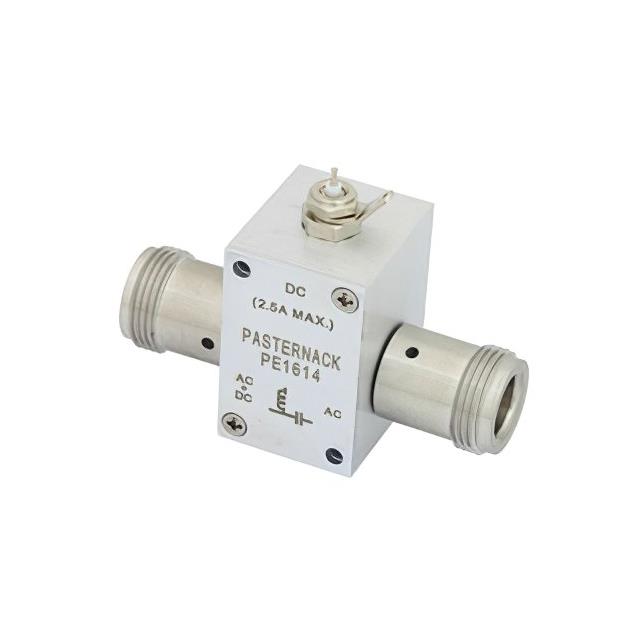

The Pasternack PE1614 is an N-type bias tee designed for RF signal conditioning applications. It operates within a frequency range of 10 MHz to 4 GHz, allowing for the simultaneous transmission of DC power and RF signals over a single cable. The device supports a maximum DC current rating of 2500 mA and a voltage rating of 100 VDC. Constructed with N-type connectors, this component facilitates efficient power injection into RF circuits without disrupting signal integrity across its specified bandwidth.

Feature Summary

• Integrates DC power and RF signals onto a single transmission line
• Operates effectively from 10 MHz up to 4 GHz
• Supports high DC current loads up to 2500 mA
• Features robust N-type connector interfaces

Applications

• RF amplifier biasing
• Antenna system power injection
• Test and measurement equipment signal conditioning

Procurement Notes

Verify the specific connector gender and cable length requirements against project specifications before procurement. Confirm that the operating environment remains within the stated voltage and current limits to ensure component longevity. Check for any RoHS compliance documentation if required by your manufacturing standards. Ensure compatibility with existing N-type infrastructure in your RF setup.

Selection Notes

Select the PE1614 when a reliable solution is needed to combine DC bias with RF signals in the UHF to microwave spectrum. Consider its 2500 mA current capacity for powering moderate-load devices. Evaluate the N-type interface for suitability with your existing cabling and connector hardware. This model is appropriate for general-purpose RF modules requiring stable power delivery alongside signal transmission.

Part Context

Pasternack Enterprises specializes in RF, microwave, and millimeter-wave components. The PE1614 belongs to their signal conditioning portfolio, specifically bias tees used to manage power and signal paths. These components are essential for maintaining signal integrity while providing necessary DC power to active RF elements in various communication and testing systems.

Replacement Considerations

Consult official Pasternack documentation for direct cross-reference part numbers. Verify that any substitute maintains identical N-type interface specifications and meets or exceeds the 4 GHz frequency range and 2500 mA current ratings.
