PE19XC7004

Overview

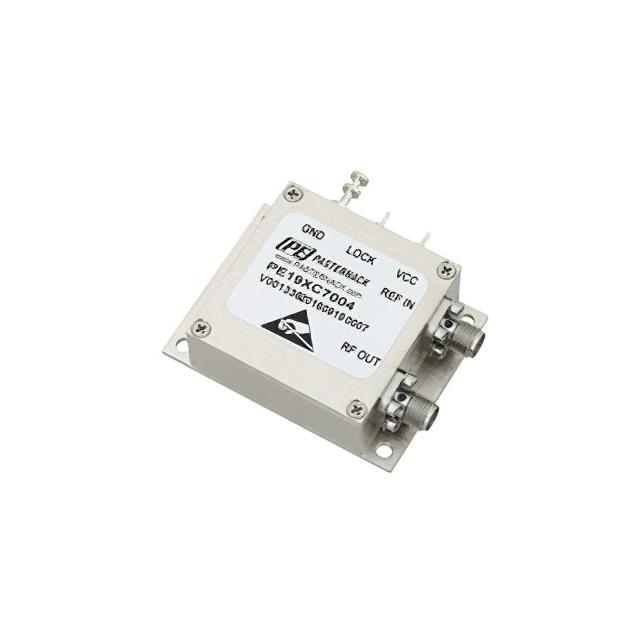

The PE19XC7004 is a 6 GHz phase-locked oscillator manufactured by Pasternack. It utilizes an external reference frequency of 10 MHz to achieve stable signal generation. The device exhibits a phase noise performance of -95 dBc/Hz, ensuring high spectral purity for demanding RF applications. It features SMA connectors for interface connectivity and is designed for reliable operation within standard industrial temperature ranges.

Feature Summary

• Integrates a phase-locked loop architecture for precise frequency synthesis
• Supports external 10 MHz reference input for enhanced stability
• Delivers low phase noise characteristics suitable for sensitive RF systems

Applications

• Test and measurement instrumentation requiring stable local oscillators
• Wireless communication base station architectures
• Signal generation equipment for laboratory environments

Procurement Notes

Verify the specific revision level and connector orientation upon ordering. Confirm that the external reference source matches the required 10 MHz specification. Ensure environmental conditions align with the operational limits defined in the official datasheet. Check for any updated compliance certifications relevant to your region before finalizing procurement.

Selection Notes

Select this component when a compact, high-frequency oscillator with low phase noise is required. Consider the SMA interface compatibility with existing PCB layouts. Evaluate the need for an external reference clock against internal oscillator alternatives. Assess thermal management requirements based on the power dissipation characteristics provided in the technical documentation.

Part Context

This part belongs to Pasternack's line of RF and wireless components, specifically focusing on signal generation modules. It complements their broader portfolio of oscillators and synthesizers designed for professional and industrial markets. The product supports system designs requiring precise frequency control without relying on complex external tuning circuits.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Cross-reference with other 6 GHz phase-locked oscillators only if electrical parameters match exactly. Verify pinout and mechanical dimensions before attempting any substitution.
