PE6TR1173C

Overview

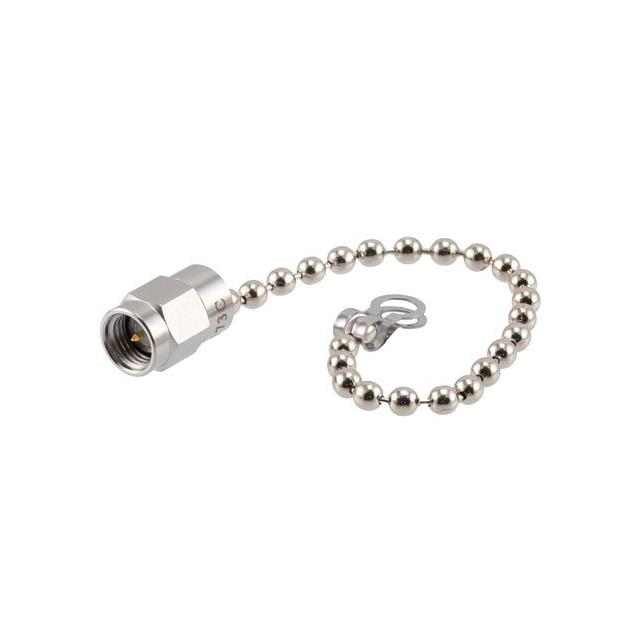

The Pasternack PE6TR1173C is an RF termination designed for high-frequency applications, operating from DC to 18 GHz. It features a SMA male input connector and a stainless steel body for durability. The component handles up to 2 Watts of continuous wave power. A chain is included with the unit to facilitate secure mounting in various setups.

Feature Summary

• Operates across a wide frequency range from DC to 18 GHz
• Features a SMA male input connector interface
• Constructed with a durable stainless steel body
• Includes a mounting chain for installation flexibility

Applications

• RF test and measurement systems
• Signal generator load matching
• Spectrum analyzer protection
• High-frequency circuit termination

Procurement Notes

Verify the specific datasheet version for the PE6TR1173C to confirm current manufacturing status and compliance details. Ensure compatibility with SMA male connectors in your system design. Check for any regional distribution restrictions or supply limitations before placing orders. Confirm that the 2W power rating meets your application's thermal requirements.

Selection Notes

Select this model when a broadband termination up to 18 GHz is required. The SMA male interface suits systems using standard SMA connections. Consider the stainless steel construction for environments requiring robust physical protection. Verify that the 2W power handling capacity aligns with your signal levels to prevent overheating.

Part Context

This component belongs to Pasternack's Coaxial RF Terminations series. It serves as a dummy load to absorb RF energy without reflection. The PE6TR1173C variant specifically utilizes an SMA male connector, distinguishing it from TNC or other interface options within the same product family.
