PE8024

Overview

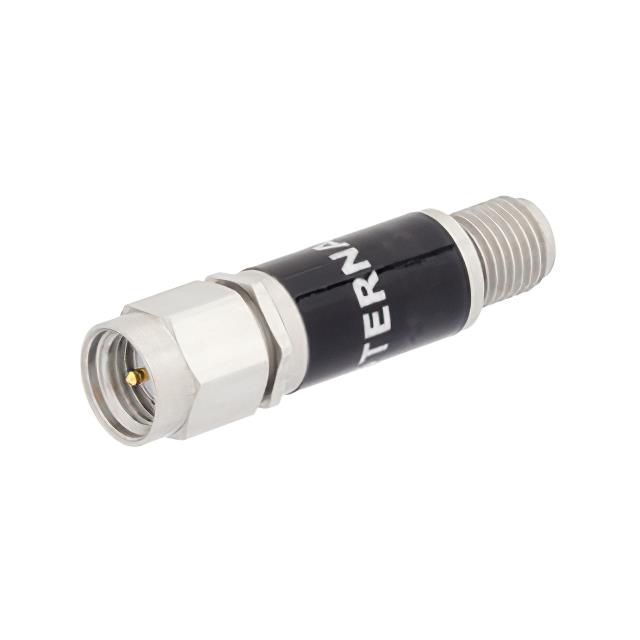

The Pasternack PE8024 is a signal conditioning high power limiter featuring SMA connectors. It operates within a frequency range of 6 GHz to 18 GHz and supports a peak power handling capacity of 100 W. The device exhibits a typical insertion loss of 2.2 dB and maintains a flat leakage level of 16 dBm. Recovery time is specified at 20 ns. The unit functions reliably across an operational temperature range from -55°C to 90°C.

Feature Summary

• Utilizes PIN diode technology for signal limiting
• Provides high peak power handling capability
• Ensures low flat leakage levels during operation

Applications

• Radar systems protection
• Receiver front-end protection
• Test and measurement equipment

Procurement Notes

Verify the specific connector gender and cable length requirements against project specifications before ordering, as variations may exist. Confirm that the operating environment temperature falls within the -55°C to 90°C range. Ensure the RF source peak power does not exceed the 100 W rating to prevent device damage. Check for any required mounting hardware or adapters compatible with the SMA interface.

Selection Notes

Select this component when a broadband limiter is required between 6 GHz and 18 GHz. Consider the 2.2 dB insertion loss impact on system gain budget. Evaluate the 100 W peak power limit against potential surge conditions. The SMA interface dictates compatibility with existing connector types in the signal chain.

Part Context

This part belongs to Pasternack's line of RF signal conditioning components designed for protecting sensitive downstream electronics. It integrates passive limiting functionality into a compact form factor suitable for integration into various RF test setups and communication systems requiring robust signal management.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
