PE8037

Overview

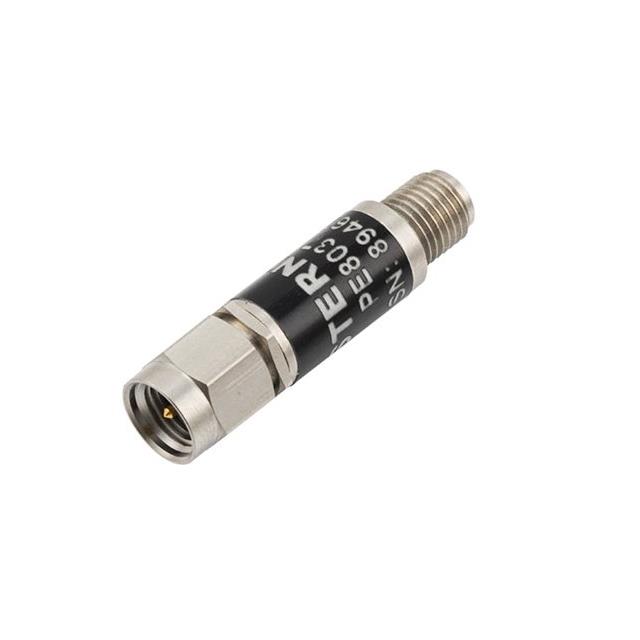

The PE8037 is a PIN Schottky limiter from Pasternack designed for RF applications. It features SMA connectors and operates within a frequency range of 8 to 16 GHz. The device handles a peak power of 200W with a maximum insertion loss of 2.2 dB. It maintains a flat leakage level of 12 dBm and exhibits a recovery time of 200 microseconds. The unit supports an operational temperature range from -55°C to 125°C, ensuring reliability in demanding environments.

Feature Summary

• Utilizes PIN Schottky technology for effective signal limiting
• Provides high peak power handling capability up to 200W
• Ensures low flat leakage levels for signal integrity
• Features wide operational temperature tolerance

Applications

• RF system protection circuits
• Transmitter output stages
• Receiver input protection
• Test and measurement equipment

Procurement Notes

Verify the specific connector type and pin configuration against your schematic requirements before ordering. Confirm that the 200W peak power rating aligns with your system's maximum expected signal levels. Ensure the operating environment remains within the specified -55°C to 125°C range to maintain performance specifications. Check for any required mounting hardware or accessories not included in the standard package.

Selection Notes

Select the PE8037 when SMA connectivity is required alongside high-frequency operation up to 16 GHz. Consider this component if your design demands robust protection against high-power transients without significant insertion loss penalties. Evaluate the 200W peak power capacity against potential surge conditions in your application. Verify that the physical size and thermal characteristics fit within your enclosure constraints.

Part Context

This component belongs to Pasternack's portfolio of RF limiters and protective devices. It serves as a critical element in safeguarding sensitive downstream components from over-power events. The product line emphasizes reliable performance across broad frequency bands and harsh environmental conditions.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.

FAQ

What is the recovery time of the PE8037 limiter?

The PE8037 has a recovery time of 200 microseconds.

Does the PE8037 support frequencies above 16 GHz?

No, the PE8037 is rated for operation between 8 and 16 GHz.
