PE8203

Overview

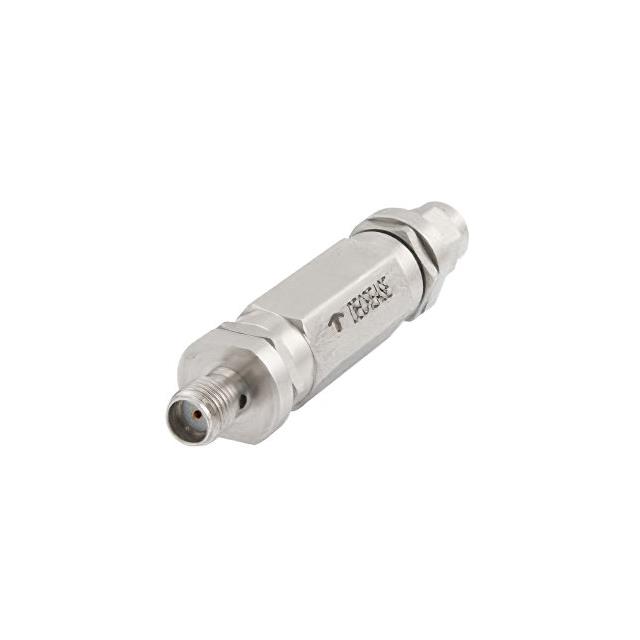

The PE8203 is an adjustable phase trimmer manufactured by Pasternack, designed for RF applications spanning from DC to 18 GHz. This component features SMA connectors and provides a precise adjustable phase shift of 10 degrees per GHz. It is classified under phase detectors and shifters within the wireless and RF integrated circuits category. The unit weighs approximately 28 grams and is packaged in bulk quantities.

Feature Summary

• Adjustable phase trimming capability across a wide frequency range
• SMA connector interface for standard RF integration
• Linear phase adjustment rate of 10 degrees per GHz

Applications

• RF signal path phase calibration
• Antenna array beamforming adjustments
• Test and measurement equipment phase alignment

Procurement Notes

Verify the specific datasheet version for the PE8203 to confirm mechanical dimensions and electrical tolerances prior to integration. Ensure that the SMA connector compatibility matches the system requirements. Check for any RoHS compliance documentation if environmental regulations apply to the deployment environment.

Selection Notes

Select the PE8203 when a linear phase adjustment of 10 degrees per GHz is required up to 18 GHz. Consider the SMA interface for ease of connection in standard RF setups. Evaluate the physical size and weight constraints against the available space in the assembly.

Part Context

This component belongs to the adjustable phase trimmers series by Pasternack. It serves as a specialized RF integrated circuit for precise phase manipulation. The product line focuses on providing stable performance in wireless and communication systems requiring accurate signal timing control.

Replacement Considerations

Consult the manufacturer's official documentation for direct substitute part numbers. Cross-reference specifications such as frequency range, connector type, and phase adjustment linearity to ensure functional equivalence with alternative components.
