PE82P5013

Overview

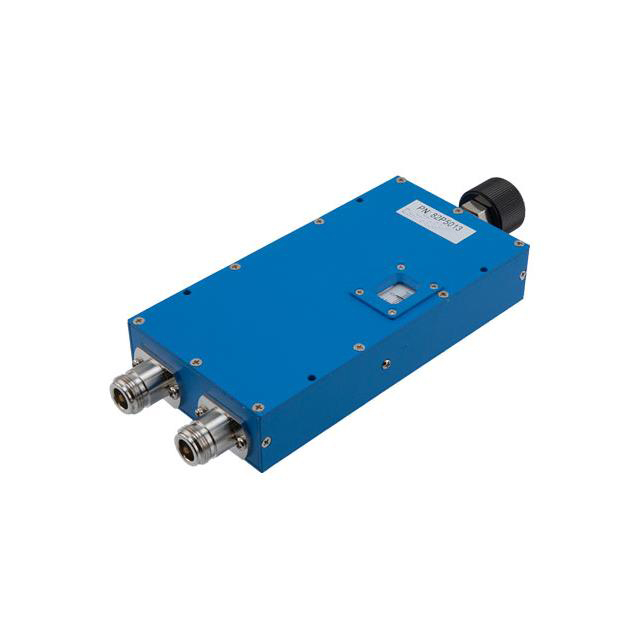

The PE82P5013 is an adjustable phase shifter manufactured by Pasternack, designed for RF applications spanning a frequency range from DC to 8 GHz. It features N-type connectors and provides an adjustable phase shift of 60 degrees per GHz. The unit weighs approximately 635 grams and is packaged in bulk.

Feature Summary

• Provides continuous phase adjustment across the specified bandwidth
• Utilizes robust N-type connector interface for reliable signal transmission
• Engineered for high-frequency operation up to 8 GHz

Applications

• Radar systems requiring precise phase alignment
• RF test and measurement equipment calibration
• Wireless communication system tuning

Procurement Notes

Verify the specific datasheet version for the PE82P5013 to confirm current RoHS compliance status and detailed mechanical dimensions. Ensure compatibility with N-type mating connectors in your assembly. Check manufacturer documentation for handling instructions regarding the bulk packaging format to prevent damage during installation.

Selection Notes

Select this component when a wideband adjustable phase shift is required from DC to 8 GHz. The fixed rate of 60 degrees per GHz offers predictable tuning characteristics. Consider the physical weight and N-type interface requirements against space constraints and existing connector standards in the design.

Part Context

This device belongs to the Adjustable Phase Shifters series within Pasternack's wireless and RF integrated circuits portfolio. It serves as a manual or semi-automatic tuning element for RF chains, distinct from digital programmable variants like the PE82P5019 which offer TTL control steps.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify electrical specifications and connector types before considering alternative models from other manufacturers.
