PE85N1003

Overview

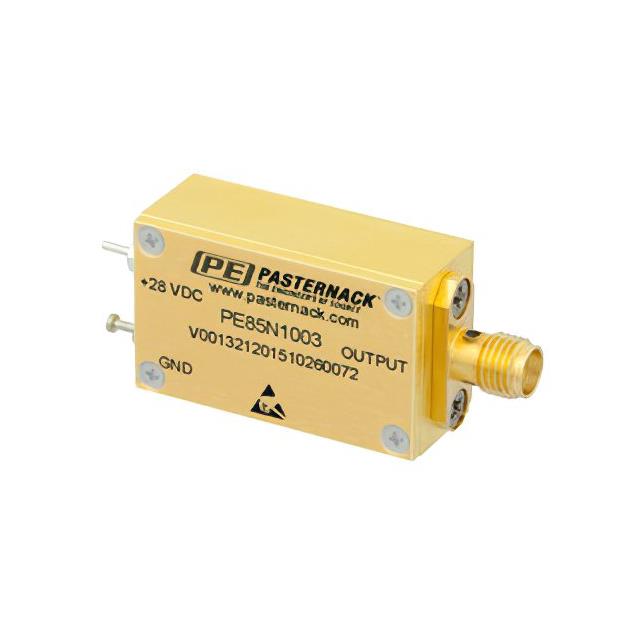

The PE85N1003 is a calibrated RF noise source module manufactured by Pasternack, designed for radio frequency testing applications. It operates within a frequency range of 10 MHz to 6 GHz and features an SMA connector interface. The device provides a nominal Excess Noise Ratio (ENR) output of 26 dB across its operational bandwidth. Power requirements are specified at +28 VDC. Constructed as a medium power noise source with a 50 Ohm impedance, the module is housed in a bulk package configuration. This component serves as a precise signal generator for characterizing receiver sensitivity and system noise performance in wireless and RF environments.

Feature Summary

• Provides calibrated excess noise ratio output for accurate RF system characterization
• Operates over a wide frequency spectrum from 10 MHz to 6 GHz
• Utilizes standard SMA connectors for reliable interfacing
• Designed as a medium power noise source with 50 Ohm impedance

Applications

• Receiver sensitivity testing
• System noise figure measurement
• RF component characterization
• Wireless communication system validation

Procurement Notes

Verify part authenticity through authorized Pasternack distributors or certified suppliers. Confirm that the received unit matches the PE85N1003 designation and includes relevant calibration documentation. Ensure handling procedures comply with electrostatic discharge precautions typical for sensitive RF modules. Check for physical integrity of the SMA connectors prior to installation. Review specific datasheet limitations regarding operating voltage and environmental conditions before deployment.

Selection Notes

Select this module when a calibrated noise source with a 26 dB ENR is required for frequencies up to 6 GHz. The SMA interface ensures compatibility with standard test equipment. Consider the +28 VDC power requirement during system design. Verify that the 50 Ohm impedance aligns with the target application's transmission line characteristics. Evaluate whether the medium power specification meets the dynamic range needs of the intended measurement setup.

Part Context

The PE85N1003 belongs to Pasternack’s series of calibrated RF noise source generators. These modules are engineered to meet precise radio frequency component standards for consistent performance. As part of the broader RF modules category, it supports various testing scenarios requiring known noise signals. The product is identified under manufacturer number PE85N1003 and is distinct from cable assemblies or connectors within the same brand portfolio.

Replacement Considerations

Consult official Pasternack documentation for cross-reference information. No public substitute part numbers are confirmed in available sources. Ensure any alternative component matches the 26 dB ENR, 10 MHz to 6 GHz range, and SMA interface specifications.
