Product Detailed Parameters
- Description：14 Pin DIP Packaged Noise Source
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Noise Source
- Frequency：10MHz ~ 3GHz
- RF Type：General Purpose
- Secondary Attributes：15V Supply
- Mounting Type：Through Hole
- Package / Case：14-DIP Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

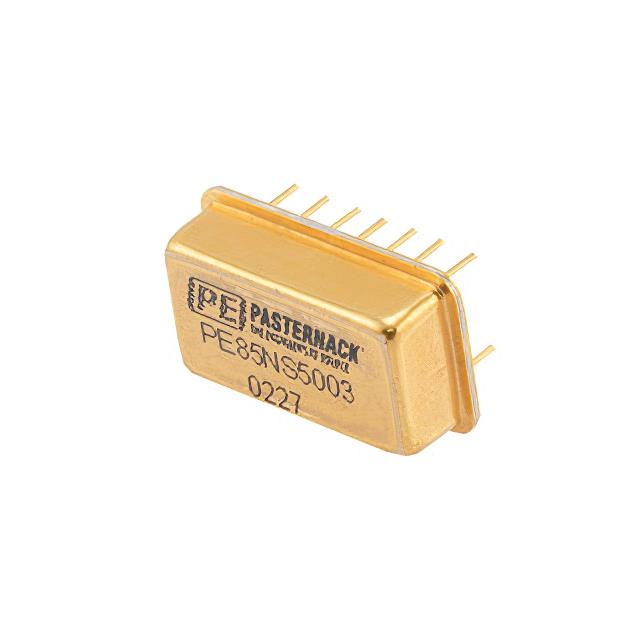

The PE85NS5003 is a calibrated RF noise source module manufactured by Pasternack. It operates within a frequency range of 10 MHz to 3 GHz and delivers an output power level of -5 dBm. The device requires a +15 VDC supply voltage for operation. It is housed in a standard 14-pin DIP package, designed for through-hole mounting on printed circuit boards. This component serves as a general-purpose noise generator for radio frequency testing applications.
Feature Summary
- Provides calibrated noise signal generation across the specified frequency band
- Utilizes a standard 14-pin dual in-line package for direct board integration
- Operates with a single positive DC voltage supply requirement
Applications
- General purpose RF test and measurement instrumentation
- Wireless communication system calibration
- Receiver sensitivity testing
- Noise figure measurement setups
Procurement Notes
Verify the specific ordering suffix and package variant against the official Pasternack datasheet before procurement. Confirm that the +15 VDC supply requirement aligns with your system design. Ensure the 14-pin DIP footprint matches your PCB layout constraints. Check current availability status as distribution may vary by region.
Selection Notes
Select this module when a calibrated noise source is required for frequencies up to 3 GHz. The 14-pin DIP form factor suits designs needing through-hole assembly. Compare the -5 dBm output level against system input requirements. Verify compatibility with existing test equipment interfaces and power supplies.
Part Context
This component belongs to the Pasternack series of calibrated RF noise source generators. These modules are designed to provide stable noise figures for characterizing RF components. The PE85NS5003 specifically targets applications requiring noise injection in the lower microwave spectrum using a standard DIP interface.
Replacement Considerations
Consult the official manufacturer documentation for confirmed substitute part numbers. Cross-reference frequency ranges, output power levels, and package dimensions when evaluating alternatives.
