PE88D12000

Overview

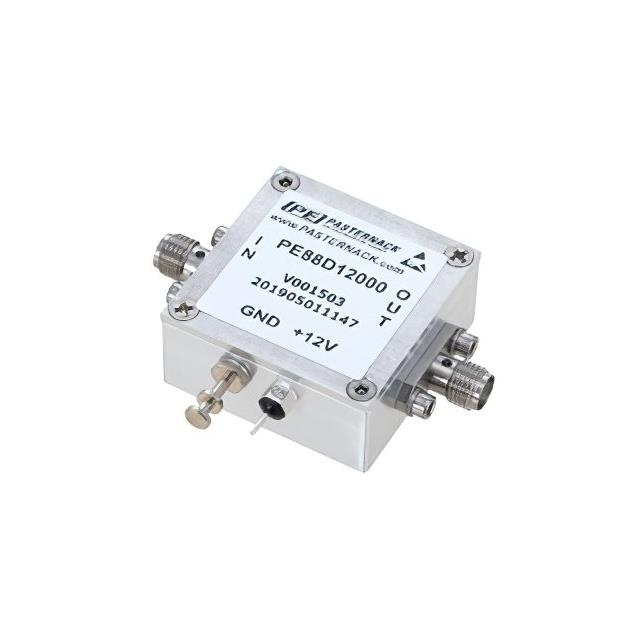

The PE88D12000 is a signal conditioning frequency divider module manufactured by Pasternack. It functions as a divide-by-12 prescaler designed for high-frequency applications. The component operates within a frequency range of 100 MHz to 13 GHz and utilizes SMA connectors for interface connectivity. This module provides precise frequency division capabilities suitable for test and measurement environments requiring stable signal processing across the specified microwave spectrum.

Feature Summary

• Divides input frequency by a factor of twelve
• Operates as a prescaler module for signal conditioning
• Supports wideband frequency coverage from 100 MHz to 13 GHz

Applications

• Test and measurement instrumentation
• Frequency synthesis systems
• Microwave signal processing

Procurement Notes

Verify the specific SMA connector gender and pin configuration required for your system integration before ordering. Confirm that the input signal levels are compatible with the module's operational specifications to ensure accurate division performance. Check for any necessary mounting hardware or thermal management requirements associated with the module form factor.

Selection Notes

Select this module when a fixed divide-by-12 ratio is required within the 100 MHz to 13 GHz range. Ensure the application environment supports the operating conditions defined in the datasheet. Compare against other prescaler options if variable division ratios or different connector types are needed for the specific design constraints.

Part Context

This component belongs to Pasternack's signal conditioning product line, specifically focusing on frequency dividers and prescalers. These modules are engineered to provide reliable frequency manipulation for RF and microwave systems. The PE88D12000 represents a specialized solution for engineers needing precise integer division in high-frequency circuit designs.
