Product Detailed Parameters
- Description：RF TRANS NPN 70V
- Series：-
- Mfr：MACOM Technology Solutions
- Package：Tray
- Transistor Type：NPN
- Voltage - Collector Emitter Breakdown (Max)：70V
- Frequency - Transition：-
- Noise Figure (dB Typ @ f)：-
- Gain：10.70dB ~ 10.81dB
- Power - Max：75W
- DC Current Gain (hFE) (Min) @ Ic, Vce：-
- Current - Collector (Ic) (Max)：6A
- Operating Temperature：200°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

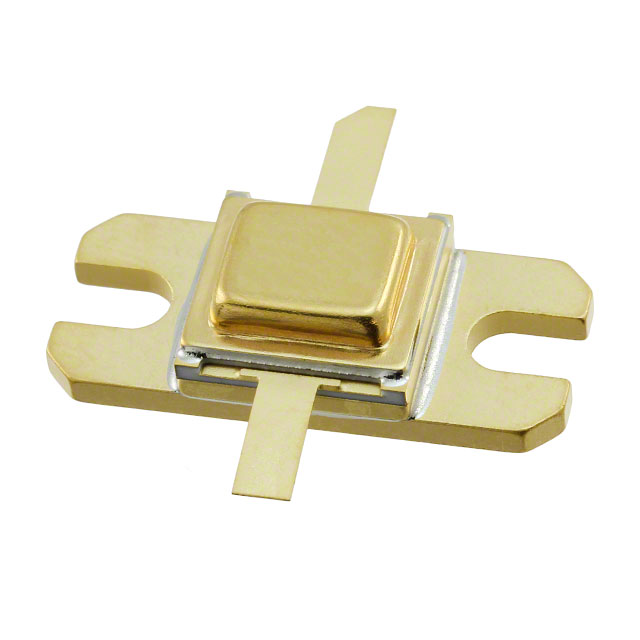

The PH1090-75L is an NPN silicon microwave power transistor designed for avionics pulsed applications. It operates in the 1030 to 1090 MHz frequency range with a 250µs pulse width and 10% duty cycle. The device delivers 75W of output power at a collector voltage of 45V, achieving up to 59.7% efficiency. Key electrical parameters include a collector-emitter breakdown voltage of 70V, a maximum collector current of 6A, and a thermal resistance of 1.5°C/W. It features internal impedance matching and utilizes a hermetic metal/ceramic package.
Feature Summary
- Designed specifically for avionics pulsed power applications
- Features internal input and output impedance matching
- Utilizes high-efficiency inter-digitized geometry
- Constructed with a hermetic metal/ceramic package
Applications
- Avionics pulsed power systems
- Broadband Class C operation circuits
- Microwave power amplification
Procurement Notes
Verify component authenticity by checking the manufacturer marking against official MACOM documentation. Confirm RoHS compliance status through the specific datasheet revision. Ensure the ordering suffix matches the required package configuration. Request the latest test data sheet to validate performance specifications prior to integration into avionics designs.
Selection Notes
Select this component for applications requiring pulsed RF power within the 1030-1090 MHz band. Evaluate thermal management requirements based on the 1.5°C/W junction-to-case thermal resistance. Consider the 250µs pulse duration and 10% duty cycle constraints when designing the drive circuitry. Verify that the system can accommodate the specified collector-emitter breakdown voltage of 70V.
Part Context
This part belongs to the PH1090 series of avionics pulsed power transistors manufactured by MACOM Technology Solutions. The series includes variants such as the PH1090-175L and PH1090-350L, which offer higher power outputs. These devices share common design characteristics optimized for military and aerospace radar and communication systems.
Replacement Considerations
Consult MACOM technical support for verified substitute part numbers. Cross-reference electrical parameters such as breakdown voltage, power dissipation, and operating frequency with potential alternatives.
