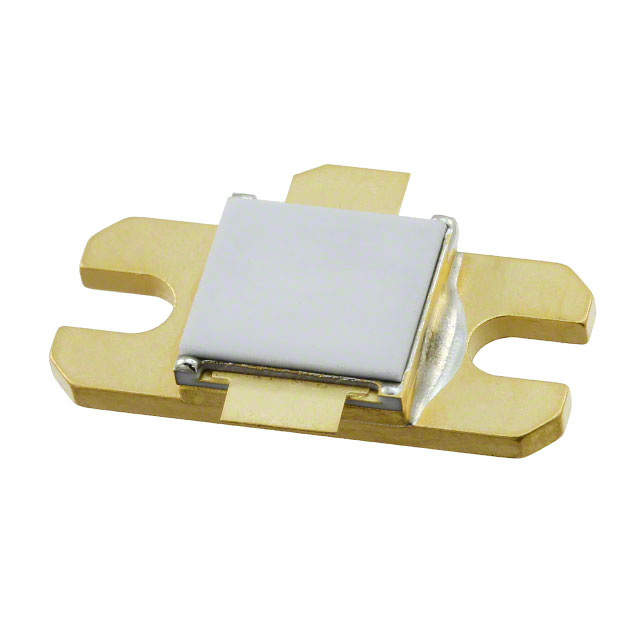

PH3135-65M

$380.34

Description：RF TRANS NPN 65V
Series：-

SKU:ac061526dc0a Category: Bipolar RF Transistors Brand: MACOM Technology Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF TRANS NPN 65V
Series：-
Mfr：MACOM Technology Solutions
Package：Tray
Transistor Type：NPN
Voltage - Collector Emitter Breakdown (Max)：65V
Frequency - Transition：-
Noise Figure (dB Typ @ f)：-
Gain：8.23dB ~ 9.09dB
Power - Max：65W
DC Current Gain (hFE) (Min) @ Ic, Vce：-
Current - Collector (Ic) (Max)：7.7A
Operating Temperature：200°C (TJ)
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PH3135-65M

Overview

The PH3135-65M is an NPN silicon microwave power transistor designed for radar pulsed applications. It delivers 65W output power within the 3.1 to 3.5 GHz frequency range, utilizing a 100µs pulse width and 10% duty cycle. The device operates with a collector-emitter voltage of 36V and features internal input and output impedance matching. Key electrical specifications include a breakdown voltage (BV_CES) of 65V, thermal resistance (R_TH(JC)) of 0.5°C/W, and a peak collector current of 7.7A. Maximum power dissipation is rated at 350W.

Feature Summary

Common base configuration supporting broadband Class C operation
High efficiency inter-digitized geometry with diffused emitter ballasting resistors
Internal input and output impedance matching for simplified integration
Hermetic metal/ceramic package construction

Applications

Radar pulsed power systems
Microwave communication transmitters
Electronic warfare equipment

Procurement Notes

Verify component authenticity through authorized MACOM Technology Solutions distributors or certified supply chain partners. Confirm RoHS compliance status and check for specific lot traceability requirements relevant to defense or aerospace procurement standards before finalizing acquisition orders.

Selection Notes

Select this component for high-power radar applications requiring stable performance in the S-band spectrum. Ensure thermal management solutions can handle the specified junction temperature limits and that the driving circuit supports the required common base configuration for optimal Class C efficiency.

Part Context

This part belongs to the M/A-COM Technology Solutions portfolio of silicon microwave power transistors. It is engineered specifically for demanding pulsed power environments where reliability and high efficiency are critical operational parameters.

Replacement Considerations

Consult official MACOM documentation for direct cross-reference data. Verify pinout compatibility and thermal interface dimensions when evaluating alternative suppliers or updated generation components.
