Product Detailed Parameters
- Description：DIODE ARRAY SCHOTT 40V 1A 3HUSON
- Series：-
- Mfr：Nexperia USA Inc.
- Package：Tape & Reel (TR)
- Diode Configuration：1 Pair Common Cathode
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io) (per Diode)：1A
- Voltage - Forward (Vf) (Max) @ If：500 mV @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：45 ns
- Current - Reverse Leakage @ Vr：55 µA @ 40 V
- Operating Temperature - Junction：150°C
- Mounting Type：Surface Mount
- Package / Case：3-PowerUDFN
- Supplier Device Package：3-HUSON (2x2)
- Grade：Automotive
- Qualification：AEC-Q101
Download product information
Overview

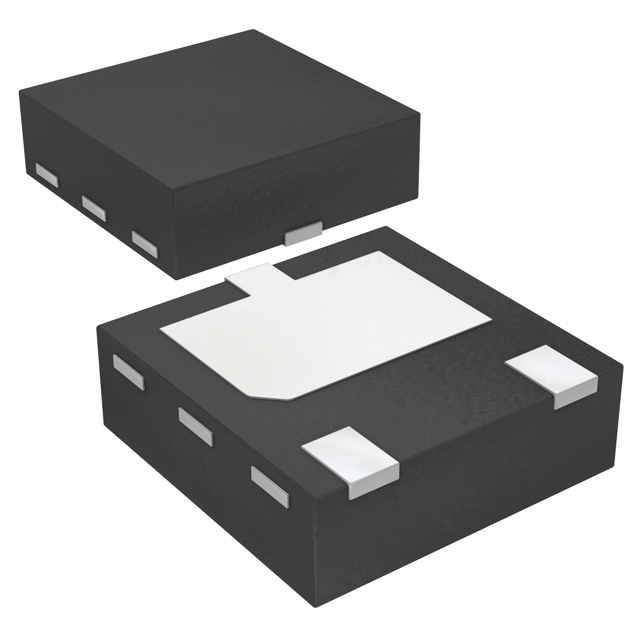

The PMEG4010CPA-QX is a dual Schottky barrier rectifier in common cathode configuration, qualified to AEC-Q101 standards. It features an average forward current of 1 A and a reverse voltage rating of 40 V. The device exhibits a typical forward voltage of 440 mV at 1 A and a maximum reverse current of 55 µA at 40 V. Encapsulated in a DFN2020-3 (SOT1061) leadless package with an exposed cathode pad for thermal management, it supports junction temperatures up to 150 °C.
Feature Summary
- Dual Schottky barrier rectifier in common cathode configuration
- Integrated guard ring for stress protection
- Exposed heat sink (cathode pad) for excellent thermal and electrical conductivity
- Leadless small SMD plastic package suitable for automatic optical inspection
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch Mode Power Supply (SMPS)
- Reverse polarity protection
- Battery chargers for mobile equipment
Procurement Notes
Verify the specific suffix 'QX' against the official Nexperia ordering information table to confirm packaging details such as reel size or tape width. Ensure the component matches the DFN2020-3 package outline dimensions and pin assignment defined in the datasheet. Confirm AEC-Q101 qualification status if automotive compliance is required for the final assembly.
Selection Notes
Select this component for designs requiring low forward voltage drop and high reliability in compact spaces. The exposed cathode pad facilitates efficient heat dissipation, making it suitable for applications with moderate power dissipation requirements. Verify that the PCB footprint accommodates the leadless SOT1061 package dimensions and solder mask specifications provided in the datasheet.
Part Context
This part belongs to Nexperia's PMEG series of low VF Schottky barrier rectifiers. These devices are designed for high-efficiency power management applications where low conduction losses are critical. The series includes variants with different voltage and current ratings, all sharing similar package technologies and automotive qualification standards.
Replacement Considerations
Check for direct substitutes within the PMEG series with matching voltage and current ratings. Verify package compatibility and pinout alignment before substitution. Ensure any replacement component meets the same AEC-Q101 qualification requirements if used in automotive contexts.
FAQ
What is the package type for the PMEG4010CPA-QX?
It is encapsulated in a DFN2020-3 (SOT1061) leadless small Surface-Mounted Device plastic package.
Is the PMEG4010CPA-QX qualified for automotive applications?
Yes, the device is qualified in accordance with the Automotive Electronics Council standard Q101.
How does the package design aid in thermal performance?
The package includes an exposed heat sink (cathode pad) which provides excellent thermal and electrical conductivity.
