PMX700ENZ

Single FETs, MOSFETs Overview

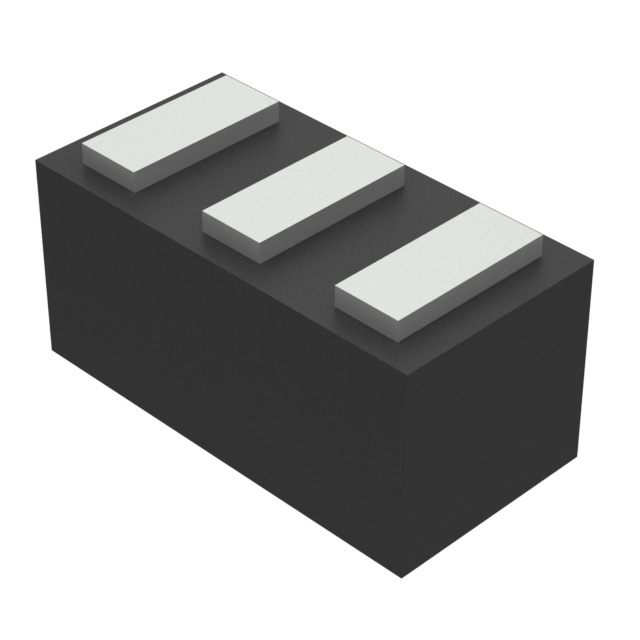

The PMX700ENZ is a 60 V N-channel Trench MOSFET in an ultra-small leadless DFN0603-3 (SOT8013) package. It features logic-level compatibility and low profile dimensions of 0.63 mm x 0.33 mm x 0.25 mm. Key electrical parameters include a drain-source voltage (VDS) of 60 V, gate-source voltage (VGS) range of -20 V to 20 V, and continuous drain current (ID) of 0.3 A at 25 °C. The typical on-state resistance (RDSon) is 680 mΩ at VGS = 10 V and ID = 0.4 A. Total gate charge (QG) is typically 0.7 nC, with turn-on delay time of 1 ns and fall time of 4 ns. Operating junction temperature ranges from -55 °C to 150 °C.

Single FETs, MOSFETs Feature Summary

• Logic-level compatible for direct interface with standard control circuits
• Ultra-small leadless DFN0603-3 package minimizes PCB footprint
• Trench MOSFET technology enables low on-state resistance
• Low profile design suitable for space-constrained applications

Single FETs, MOSFETs Applications

• Battery switch
• High-speed line driver
• Low-side load switch
• Switching circuits

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix 'Z' against official Nexperia documentation to confirm if it denotes a specific tape-and-reel quantity or variant distinct from the base PMX700EN part number. Confirm package marking codes and ordering information directly from the manufacturer's latest datasheet before finalizing procurement specifications.

Single FETs, MOSFETs Selection Notes

Select this component for designs requiring minimal board space and low power dissipation in switching applications. Ensure the required drain current does not exceed 0.3 A under standard thermal conditions. Verify that the logic level of the driving circuit is compatible with the device's threshold voltage characteristics for reliable switching performance.

Single FETs, MOSFETs Part Context

This device belongs to Nexperia's portfolio of small-signal MOSFETs utilizing Trench technology. It is designed for surface-mount assembly in compact electronic systems. The DFN0603-3 package represents a leadless form factor intended to reduce thermal resistance and improve heat dissipation compared to traditional plastic packages.

Single FETs, MOSFETs Replacement Considerations

Check for alternative part numbers within the same DFN0603-3 family offering similar voltage and current ratings. Verify pinout compatibility and thermal resistance values when substituting to ensure equivalent performance in the target application.

Single FETs, MOSFETs FAQ

What is the maximum operating junction temperature?

The maximum operating junction temperature is 150 °C.

Is the PMX700EN automotive qualified?

No, unless explicitly stated otherwise in specific product announcements, this product is not automotive qualified.
