Product Detailed Parameters
- Description：JFET N-CH 30V TO92
- Series：PN4416
- Mfr：Linear Integrated Systems, Inc.
- Package：Bulk
- FET Type：N-Channel
- Voltage - Breakdown (V(BR)GSS)：30 V
- Drain to Source Voltage (Vdss)：-
- Current - Drain (Idss) @ Vds (Vgs=0)：-
- Current Drain (Id) - Max：-
- Voltage - Cutoff (VGS off) @ Id：-
- Input Capacitance (Ciss) (Max) @ Vds：0.8pF @ 15V
- Resistance - RDS(On)：-
- Power - Max：300 mW
- Operating Temperature：-55°C ~ 135°C (TJ)
- Mounting Type：Through Hole

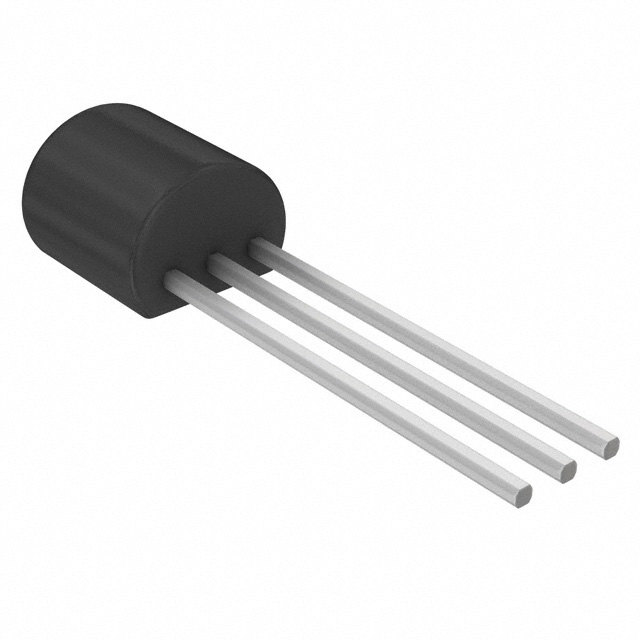

- Package / Case：TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package：TO-92
- Grade：-
- Qualification：-
Download product information
Overview
The PN4416 is an N-channel Junction Field-Effect Transistor (JFET) manufactured by Linear Integrated Systems, Inc. It is housed in a TO-92 3L package and complies with RoHS standards. The device features a drain-source breakdown voltage of 30 V and a gate-source breakdown voltage of -30 V. It has a maximum power dissipation of 300 mW and supports continuous drain current up to 20 mA. The component operates within a temperature range of -55°C to +150°C.
Feature Summary
- N-channel junction field-effect transistor configuration
- Low noise performance characteristics
- High input impedance capability
Applications
- Low noise amplifier circuits
- High impedance switching applications
- Precision analog signal processing
Procurement Notes
Verify the specific ordering suffix matches the required package variant. Confirm RoHS compliance status for regulatory requirements. Check datasheet specifications for screening options if advanced performance is needed. Ensure the supplier provides official documentation matching the manufacturer's part number.
Selection Notes
Select this component for designs requiring high input impedance and low noise in an N-channel JFET topology. Consider the TO-92 through-hole package for prototyping or standard PCB layouts. Evaluate thermal management needs given the 300 mW power dissipation limit. Compare against other series members like the PN4392 for specific voltage or current constraints.
Part Context
The PN4416 belongs to the 2N/PN/SST4416 series from Linear Integrated Systems, Inc. This series includes variants available in TO-72, TO-92, and SOT-23 packages. The brand specializes in discrete JFETs and low-noise transistors for analog applications. The product line emphasizes precision and reliability for sensitive electronic systems.
Replacement Considerations
Consult the official datasheet for direct pin-compatible substitutes within the same series. Verify electrical parameters such as breakdown voltage and current ratings before substitution. Cross-reference with equivalent industry-standard JFETs if availability is constrained.
