Product Detailed Parameters
- Description：IGBT MODULE, 1IN1, BRAKE CHOPPER
- Series：-
- Mfr：KYOCERA AVX
- Package：Bulk
- IGBT Type：-
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：2V @ 15V, 75A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：290 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：8000 pF @ 25 V
Download product information
Overview

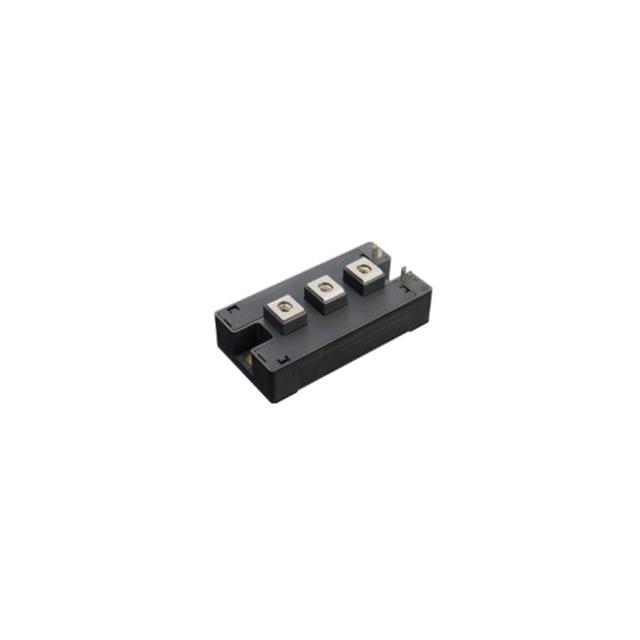

The PRFMB75W12 is a single IGBT module manufactured by KYOCERA AVX, designed for high-power applications. It features a maximum collector-emitter voltage (VCEO) of 650 V and a continuous collector current of 75 A at 25°C. The device includes an integrated Freewheeling Diode (FRD) within a 1-in-1 brake chopper circuit configuration. Mechanical dimensions are 94 mm x 35 mm x 30 mm, with a gross weight of 150 g. It supports screw mounting and operates within a temperature range of -40°C to +150°C.
Feature Summary
- Integrates an IGBT and Freewheeling Diode (FRD) in a single 1-in-1 brake chopper circuit package.
- Engineered for chassis or screw mounting to facilitate robust thermal management.
- Utilizes Silicon (Si) technology for reliable high-voltage switching performance.
Applications
- Industrial motor drives and inverters
- Brake chopper circuits in power conversion systems
- High-power DC-AC inversion applications
Procurement Notes
Verify component authenticity through authorized KYOCERA AVX channels or certified distributors. Confirm the specific manufacturing date code and lot traceability against official datasheet requirements. Ensure storage conditions comply with moisture sensitivity levels prior to soldering. Validate that the intended application voltage and current ratings remain within the specified 650 V and 75 A limits to guarantee long-term reliability and safety compliance.
Selection Notes
Select this module for applications requiring a compact, integrated solution combining IGBT switching and freewheeling diode rectification. Consider the 650 V rating and 75 A continuous current capacity relative to the load profile. Evaluate the mechanical footprint of 94 mm x 35 mm x 30 mm for compatibility with existing chassis designs. Assess thermal management requirements given the 150 g mass and screw-mount installation method for effective heat dissipation.
Part Context
The PRFMB75W12 belongs to the KYOCERA AVX IGBT module series, which provides discrete power semiconductor solutions for demanding industrial environments. These modules are engineered to replace multiple discrete components with a unified package, reducing parasitic inductance and improving switching efficiency. The product line emphasizes robust construction and high thermal cycling capability for critical power electronics infrastructure.
Replacement Considerations
- PRFMB75W12
FAQ
What is the maximum collector-emitter voltage for the PRFMB75W12?
The maximum collector-emitter voltage (VCEO) is 650 V.
Does the PRFMB75W12 include a freewheeling diode?
Yes, it integrates a Freewheeling Diode (FRD) as part of its 1-in-1 brake chopper circuit design.
