PRHMB150W6

Overview

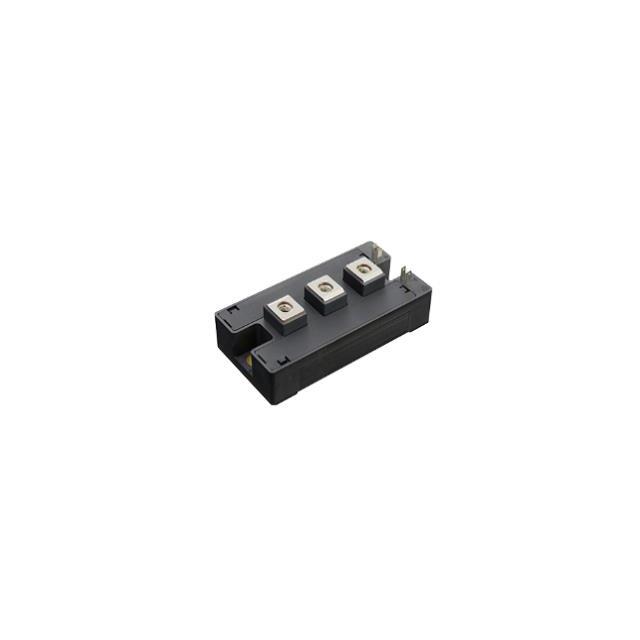

The PRHMB150W6 is a single IGBT module manufactured by KYOCERA AVX, designed for high-power switching applications. It features a collector-emitter maximum voltage (VCEO) of 650 V and supports a continuous collector current of 150 A at 25°C. The device integrates a Fast Recovery Diode (FRD) within a brake chopper circuit configuration. Key electrical parameters include a collector-emitter saturation voltage of 1.45 V and a gate-emitter maximum voltage of 20 V. The module utilizes silicon technology and is housed in a screw-mount package measuring 94 mm x 35 mm x 30 mm, operating within a temperature range of -40°C to +150°C.

Feature Summary

• Integrates an IGBT with a Fast Recovery Diode (FRD) in a single brake chopper circuit configuration
• Utilizes silicon technology for robust high-power switching performance
• Designed for screw-mount installation to facilitate thermal management and mechanical stability

Applications

• Brake chopper circuits in industrial drives
• High-power motor control systems
• Industrial power conversion equipment

Procurement Notes

Verify the specific ordering suffix and revision level against official datasheets before procurement. Confirm that the supplier provides valid traceability documentation and compliance certificates. Check for any product discontinuation notices or lifecycle status updates from the manufacturer to ensure long-term availability for production planning.

Selection Notes

Select this component based on the required 650 V blocking voltage and 150 A continuous current capacity. Ensure the application environment allows for the specified -40°C to +150°C operating temperature range. Verify that the PCB or heatsink design accommodates the 94 mm x 35 mm x 30 mm physical dimensions and supports the necessary screw-mounting hardware for secure installation.

Part Context

This part belongs to the KYOCERA AVX IGBT module family, which focuses on high-power discrete and module solutions. These components are engineered for demanding industrial environments requiring reliable switching and high current handling capabilities. The series typically includes integrated diodes for specific circuit topologies like brake choppers.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Evaluate alternatives only if they match the 650 V rating, 150 A current, and identical pinout and mounting dimensions.
